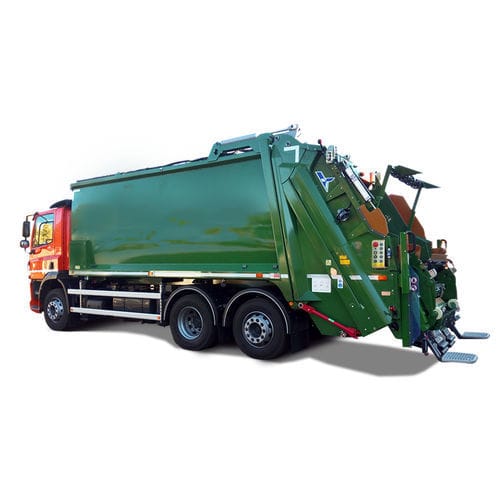

Hydraulic bin lifter Olympus EuroTRADE

The Olympus EuroTRADE provides a class leading waste & recycling collection solution with the ability to safely handle a wide range of containers with its robust rear mounted lift system. Unique geometery gives a 55° tipping angle with no 'kick out' of the container towards the operator when lifting cycle starts Multifunctional bin-lift system to handle a wide variety of container sizes/ types without adjustment Master/slave hydraulic system means that the bin lift comb is level every single time Low manual loading height, ideal for hand loading of bulky waste Binlift mounting integral to the Olympus tailgate giving a shorter overhang Flexible lower chair section to support the container, dampen movement and reduce possible damage to container and binlift SPECIFICATIONS Cycle Time: 2-wheel containers 6 - 7 sec. 4-wheeled 10-12 sec Handling Capacity: 170kg (2 wheel) / 750kg (wheel) Noise Level: < 65dB(A) Mounting Method: Integrated on Olympus tailgate Operation Mode: Manual Weight: 600kg Hydraulic Requirements: Ideal 40 l/min., maximum 60 l/min., 180 bar Safety: CE machinery directive certification, EN 1501.1 & EN 1501.5 Auto-Gather: Yes Diagnostic Display: No
