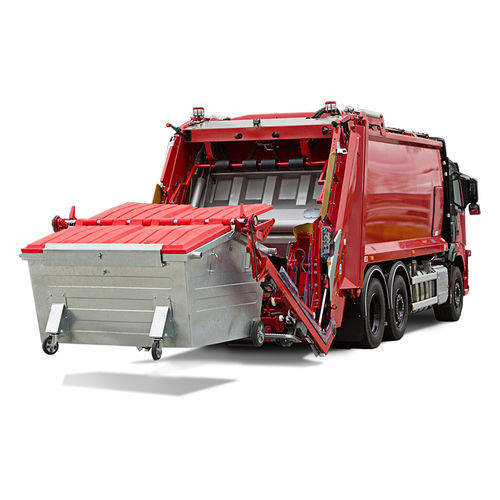

Hydraulic bin lifter OLYMPUS EuroMAX

manual

GREAT FLEXIBILITY & SAFE HANDLING OF EUROTAINERS The Olympus EuroMAX provides a class leading waste & recycling collection solution with the capability to safely handle a wide range of containers including Eurotainer containers with its robust rear mounted lift system. With maximum operational flexibility in mind, the Olympus EuroMAX design offers some fantastic features and efficiency savings benefits. Unique geometery gives a 55° tipping angle with no 'kick out' of the container towards the operator when lifting cycle starts Multifunctional bin-lift system to handle a wide variety of container sizes/ types without adjustment Master/slave hydraulic system means that the bin lift comb is level every single time Low manual loading height, ideal for hand loading of bulky waste Binlift mounting integral to the Olympus tailgate giving a shorter 400mm overhang Flexible lower chair section to support the container, dampen movement and reduce possible damage to container and binlift SPECIFICATIONS Cycle Time: 2-wheel containers 6 - 7 sec. 4-wheeled 10-12 sec Eurotainer 23 sec. Handling Capacity: 150kg (2 wheel) / 750kg (4 wheel) / 2000kg Eurotainer Noise Level: < 65dB(A) Mounting Method: Integrated on Olympus tailgate Safety: CE machinery directive certification, EN 1501.1 & EN 1501.5 Operation Mode: Manual Weight: 995kg Hydraulic Requirements: Ideal 40 l/min., maximum 60 l/min., 180 bar Auto-Gather: Yes Diagnostic Display: No
