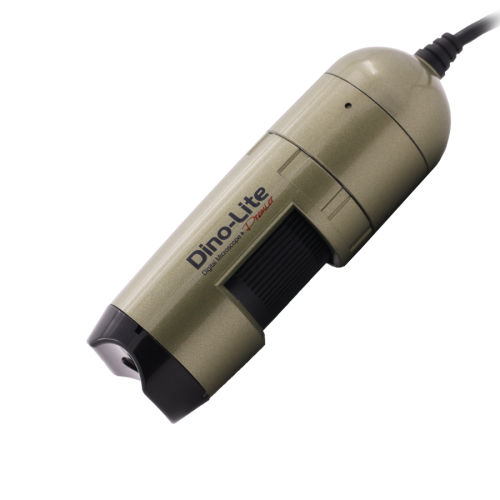

Infrared microscope MEDL4N5

for analysismedicalportable

The CapillaryScope 500 (MEDL4N5) is a special version intended for looking at the microcirculation (microcapillar function) under nails. It is very easy to capture and store highly detailed magnified images. The magnification rate is 500x. Specification Lighting Light/ LED type - White Number of LEDs - 8 LED on/off switchable: - Yes Infrared filter - IR cut-filter >650 nm Diffuser available - No Polarizer - No Optics Lens type - Glass with anti-reflection coating Sensor Sensor type - CMOS Resolution - 1.3 Megapixel (1280x1024) Maximum frame rate - 30 fps Compatibility Operating system - Windows 7, 8, 10 & 11, MacOS 10.9 and up Software - DinoCapture 2.0 (Windows), DinoXcope (Mac OS) Supported image formats (Windows) - BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX Supported video formats (Windows) - WMV, FLV, SWF Supported image formats (MacOS) - JPEG, PNG Supported video formats (MacOS) - MOV Imaging standards - DirectShow, UVC Housing Housing material - Composite/plastic housing Magnification lock - Yes Cable length - 1.8m Features Special feature - No Measurement - No Calibration - No Microtouch sensor - Yes
