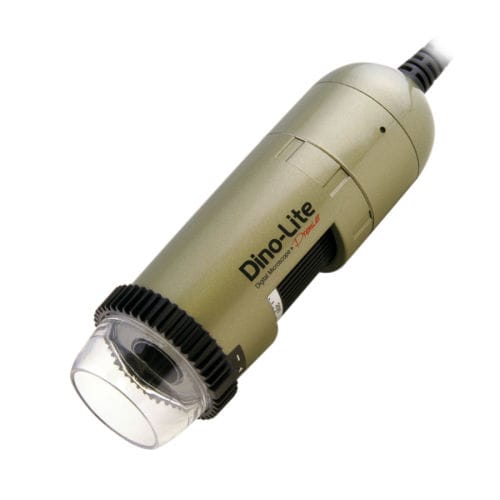

Infrared microscope TrichoScope MEDL4HM

medicalpolarizationUSB

The Dino-Lite TrichoScope Polarizer (MEDL4HM) is a great instrument for the examination of the human scalp and for hair analysis, e.g. for hair loss research. With the high magnification of up to 200 times a single hair can be viewed with great detail. The built-in polarizer filter minimizes the glaring effect of the scalp/ hair. Specification Lighting Light/ LED type - White Number of LEDs - 8 LED on/off switchable: - Yes Infrared filter - IR cut-filter >650 nm Diffuser available - No Polarizer - Yes, linear Optics Lens type - Glass with anti-reflection coating Sensor Sensor type - CMOS Resolution - 1.3 Megapixel (1280x1024) Maximum frame rate - 30 fps Compatibility Interface - USB 2.0 Operating system - Windows 7, 8, 10 & 11, MacOS 10.9 and up Software - DinoCapture 2.0 (Windows), DinoXcope (Mac OS) Supported image formats (Windows) - BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX Supported video formats (Windows) - WMV, FLV, SWF Supported image formats (MacOS) - JPEG, PNG Supported video formats (MacOS) - MOV Imaging standards - DirectShow, UVC Housing Housing material - Composite/plastic housing Magnification lock - Yes Cable length - 1.8m Features Special feature - No Measurement - No Calibration - No Microtouch sensor - Yes
