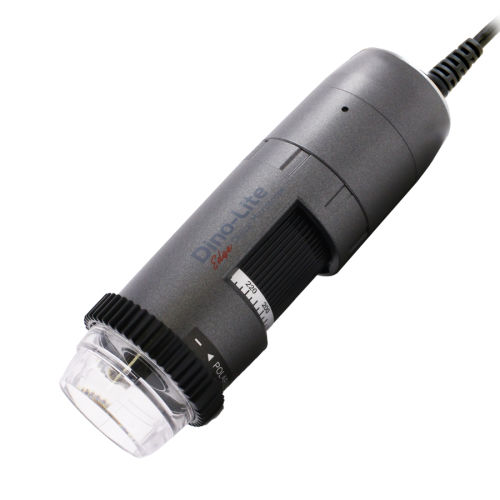

Infrared microscope PodoScope (MEDL4FW)

medicalUSB

With the PodoScope (MEDL4FW) changes in the skin of the foot and the foot itself can be documented by taking photographs and making movies as well. These images can be stored in the file of the patient. The podiatrist and his patient can view the images in real time on a laptop, Windows tablet or computer. An external light source is not required in the investigation, since the PodoScope features built-in LED lights with eight bright white LEDs. The lighting and PodoScope themselves are powered via the USB port, so that the PodoScope is always ready and does not depend on batteries. Specification Lighting Light/ LED type - White Number of LEDs - 8 LED on/off switchable: - Yes Infrared filter - IR cut-filter >650 nm Diffuser available - No Polarizer - Yes, linear Optics Lens type - Glass with anti-reflection coating Sensor Sensor type - CMOS Resolution - 1.3 Megapixel (1280x1024) Maximum frame rate - 30 fps Compatibility Operating system - Windows 7, 8, 10 & 11, MacOS 10.9 and up Software - DinoCapture 2.0 (Windows), DinoXcope (Mac OS) Supported image formats (Windows) - BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX Supported video formats (Windows) - WMV, FLV, SWF Supported image formats (MacOS) - JPEG, PNG Supported video formats (MacOS) - MOV Imaging standards - DirectShow, UVC Housing Housing material - Composite/plastic housing Magnification lock - Yes Cable length - 1.8m Features Special feature - No Measurement - No Calibration - No Microtouch sensor - Yes
