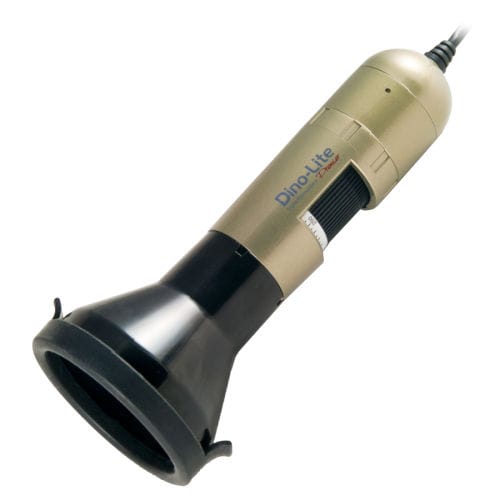

Opto-digital microscope IriScope (MEDL4R)

for analysismedicalportable

The IriScope (MEDL4R) offers a new, fast and easy way to make pictures of eyes. The IriScope has 2x2 LED's (white/yellow) that illuminate the side of the eye which reduces the reflections in the image as well as the discomfort by bright light. The yellow LED's provide better images of dark irises. The images have a maximum resolution of 1.3 Megapixel. Specification Lighting Light/ LED type - White/ Yellow Number of LEDs - 2+2 LED on/off switchable: - Yes Infrared filter - IR cut-filter >650 nm Diffuser available - No Polarizer - No Optics Lens type - Glass with anti-reflection coating Sensor Sensor type - CMOS Resolution - 1.3 Megapixel (1280x1024) Maximum frame rate - 30 fps Compatibility Interface - USB 2.0 Operating system - Windows 7, 8, 10 & 11, MacOS 10.9 and up Software - DinoCapture 2.0 (Windows), DinoXcope (Mac OS) Supported image formats (Windows) - BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX Supported video formats (Windows) - WMV, FLV, SWF Supported image formats (MacOS) - JPEG, PNG Supported video formats (MacOS) - MOV Imaging standards - DirectShow, UVC Housing Housing material - Composite/plastic housing Magnification lock - Yes Cable length - 1.8m Features Special feature - No Measurement - No Calibration - No Microtouch sensor - Yes
