Infrared microscope DermaScope® MEDL4DM

laboratorypolarizationUSB

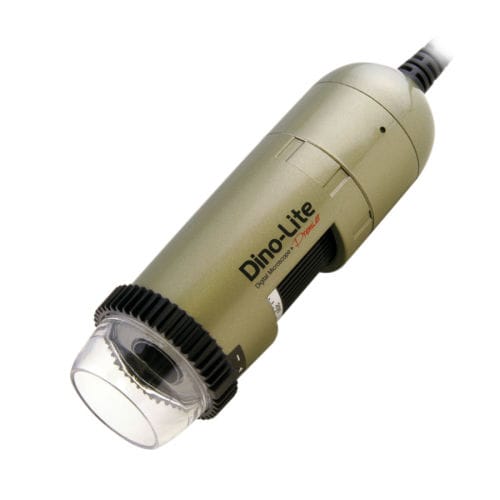

The Dino-Lite DermaScope® Polarizer 200x (MEDL4DM) has a 1.3 megapixel camera and a magnification of 10 to 70x and 200x. Also this model DermaScope® features a built-in and fully adjustable polarization filter to reduce the gloss effect of the skin. The Dino-Lite DermaScope® Polarizer 200x models are special models at a much higher magnification, which is often used for specialized dermatological applications or, for example, the analysis of skin biopsies. Because of the high magnification of this model suspicious nevi can be analysed with more accuracy. In practice, this model is used for the analysis and interpretation of biopsies and other preparations, in short, more for laboratory research. Specification Lighting Light/ LED type - White Number of LEDs - 8 LED on/off switchable: - Yes Infrared filter - IR cut-filter >650 nm Diffuser available - No Polarizer - Yes, linear Optics Lens type - Glass with anti-reflection coating Sensor Sensor type - CMOS Resolution - 1.3 Megapixel (1280x1024) Maximum frame rate - 30 fps Compatibility Interface - USB 2.0 Operating system - Windows 7, 8, 10 & 11, MacOS 10.9 and up Software - DinoCapture 2.0 (Windows), DinoXcope (Mac OS) Supported image formats (Windows) - BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX Supported video formats (Windows) - WMV, FLV, SWF Supported image formats (MacOS) - JPEG, PNG Supported video formats (MacOS) - MOV Imaging standards - DirectShow, UVC Housing Housing material - Composite/plastic housing Magnification lock - Yes Cable length - 1.8m Features Special feature - No Measurement - No Calibration - No Microtouch sensor - Yes
