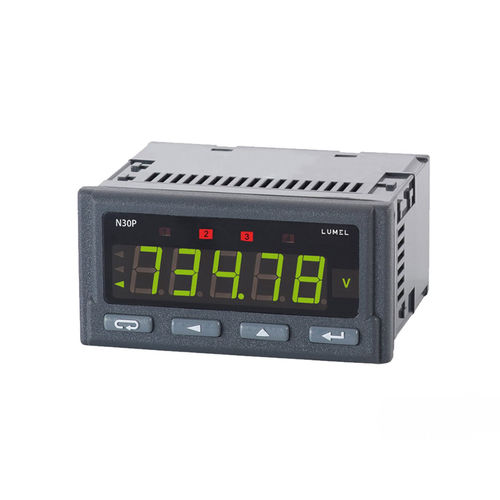

N30P meter is destined to measure: AC voltage, AC current, active, reactive and apparent power, cos φ, tg φ, φ, frequency, active, reactive and apparent energy, 15 min. active power, 10 min. voltage, 10 sec. frequency in single-phase power network.
Input:
Current: 0…1 or 0…5A
Voltage: 0…100V or 0…400V
Output:
Relay (4), analog (1), energy pulse (1), digital RS485/MODBUS (1)
3-colour display – red, green and orange programmable in three intervals of the measured value
14mm digit hight
Highlighted measuring units
4 alarm outputs with signalling by LED diodes, operating in 6 different modes
Conversion of any measured value into a 0/4…20mA or 0…10V analog signal
Storage of minimal and maximal values for all measured quantities
Meter programming from the keyboard or through the RS485 interface by means of free eCon software
Parameters can be reprogrammed are as follows:
Display colour, individually in three intervals
Thresholds of displayed overflows
Display precision of the result (decimal point)
Highlight of the unit
Average time of the measurement
Recounting of indications (individual characteristic)
Power supply: 85…253V AC/DC or 20…40V AC/DC
Protection level from frontal side: IP65
External dimensions: 96 x 48 x 64 mm.
