digital multimeter / portable / pocket / 1000 V
NP15

{{requestButtons}}

Characteristics

  • Type:

    digital

  • Form:

    portable, pocket

  • Max voltage:

    1000 V

  • Max current:

    10 A

  • Additional features:

    frequency

  • Other characteristics:

    TRMS, AC/DC, AC, DC

Description

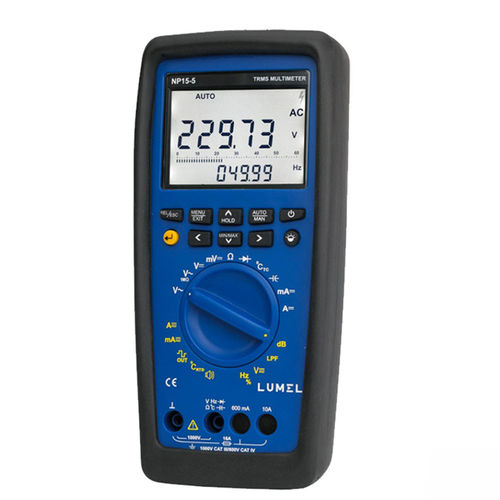

True RMS digital multimeter NP15 is a complete tool for testing and measuring equipped with over 30 different functions. It is characterized by a high level of safety, high measurement resolution, wide measuring range, reliability and durability.
When designing NP15 special attention was paid to the safety of use of the device and its functionality, through the use of, among others, the function of signaling the presence of dangerous voltage at the terminals of the meter, the buzzer informing about exceeding the preset range, the use of one common fuse in a separate pocket for all current measurement ranges from 600μA to 10 A AC/DC, or the intuitive MENU of the instrument.

Voltage measurement of AC, DC and AC / DC up to 1000V
Current measurement of AC, DC and AC / DC up to 10A
Low input impedance
Measurement of TRMS effective
Data logging & View function (up to 32000 readings)
100 kHz bandwidth for voltage measurement
Resistance measurement
Frequency and duty cycle measurement
Temperature measurement with J, K, Pt100 & Pt1000 sensors
Capacitance measurement
Automatic / Manual measuring range selection
Low-pass filter mode with a cutoff frequency of 1kHz
Voltage noise measurement and suppression (dB)
Square wave signal generator
