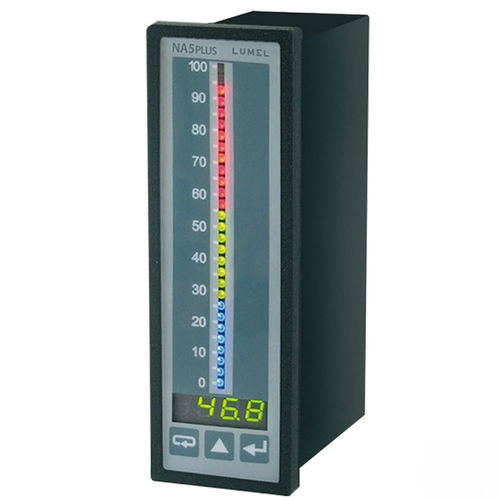

Process indicator NA5PLUS
with bar graph displaypanel-mountRS-485

process indicator
process indicator
Add to favorites
Compare this product


Characteristics

Measured value
process
Display
with bar graph display
Type
panel-mount
Other characteristics
RS-485, Modbus

Description

Meters with bargraph are devices ensuring both a high measurement accuracy and very well visualization of the measuring process courses. Very well visualization of the process is possible through using in meters 3 and 7-coloured bargraph built with diodes made in the gallium nitride technology. They can find application in various industrial fields, e.g.food industry, pumping stations and savage-treatment plants, chemical industry, weather stations, brewing industry and many other fields where they are destined for visualisation of the measured value and evaluation of the monitored manufacturing process change trend. They can also find application in automation systems where programmable controllers are applied.Analog Relays digital RS-485 with MODBUS protocol Supply: 95…230…253 V AC/DC, 20…24…40 V AC/DC Vertical, 1-measuring channel, with bargraph and display Measurement of the input quantity and displaying it on the LED display and on the bargraph evaluation of the input signal into the indication on the base of the individual linear characteristic Arithmetical: raising to a power, extraction of roots Programming of the bargraph colour and resolution Signalling of the set alarm value exceeding Recording of the measured signal in programmed time intervals Memorisation of maximal and minimal values Programming of the measurement averaging time Programming of the indication resolution Lockout of parameter introduction by means of a password Servicing of the RS-485 interface in MODBUS protocol, both in ASCII and RTU mode Galvanic isolation Meter for panel mounting External dimensions: 48 x 144 x 92mm

Catalogs

No catalogs are available for this product.

See all of DITEL‘s catalogs
