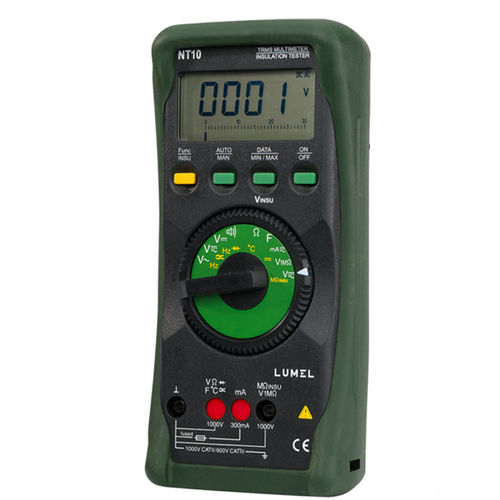

Portable insulation resistance meter NT10

Insulation meter NT10 features a large backlit LED display and its compact and robust design makes NT10 meter a reliable and easy-to-use instrument. This product is designed to measure AC/DC voltage and current, frequency, resistance, circuit continuity, diode, capacitance, to perform current measurements using clamps and insulation resistance measurements. Insulation resistance measurement up to 3 GΩ Measurement of DC and AC voltage in the range of 30mV…1000 V Measurement of DC and AC current in the range of 300μA…300mA Resistance measurement 30Ω…30MΩ Capacity measurement 30nF…30μF Frequency measurement 300Hz…100kHz Measuring the fill factor (%) HOLD Function Temperature measurement in the range of -200…800ºC / Pt100/ Pt1000 Analog scale
