process indicator / temperature / load / torque
BETA-MP

Add to MyDirectIndustry favorites
Compare this product
process indicator / temperature / load / torque process indicator / temperature / load / torque - BETA-MP
{{requestButtons}}

Characteristics

  • Measured value:

    process, temperature, load, torque, force, weight

  • Display:

    digital

  • Type:

    recessed

Description

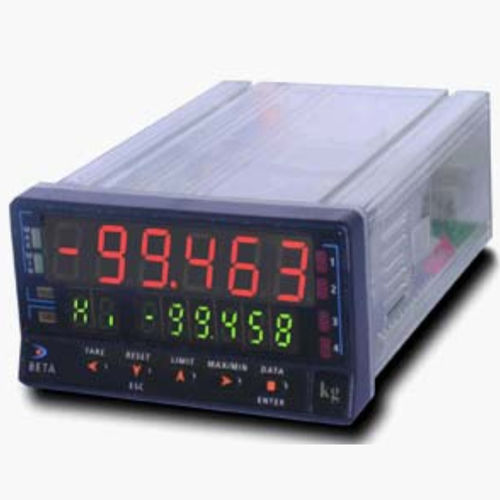

Based on the Beta-M technology and building on their excellent performance Beta-MP adds the ability to program up to 8 different complete configurations that allow the use of 8 sensors with different calibrations.
The configuration (sensor) change is accessible by keyboard or logic functions.
Useful, for example, materials testing laboratories where sensors have different ranges, sensitivities, etc previously calibrated and saved in the Beta-MP, in a few seconds allowing the change of a sensor to another. See Addendum.

• Process variables (mV, V, or mA)
• Pt100 Temperature sensors or Thermocouples J, K, T, R, S, E.
• Weight, load, force, torque with bridge sensor up to ±300mV.
• Displacement, linear potentiometer.
• 29 logical functions user selectables.
• Two kind of filters with 10 leves
• Average up to 200 readings.
• 3 rate of display.

Very easy to program to be adapted to any industrial process.
