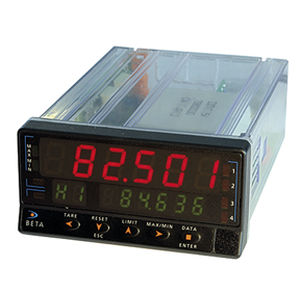

Process indicator BETA-D

digitalrecessed

BETA-D is designed for counting and totalising applications or as tachometer with totalizer which accepts pulse signals generated by a wide range of sensors in the market. With a 6 digits display you can visualize up to 3 partial counters and a 8 digits display where it is visualized simultaneously one of the three totals. In the tachometer-totalizer case it is possible to measure the velocity in programmable units (Flow) and the accumulated total at the same time (Cost). Outstanding characteristics: • Bi-directional counter with fase squaring X1, X2, X4. • Independent multiplying factor per each channel. • 2 physical inputs and 1 virtual input. • Independent programming of unit/batch on each channel. • Arithmetic operations between channels (+, -, x, / and %) • Up to 3 totalizers. • Tachometer with spinning direction indication. • Setpoint programming direct access. • 27 logical functions user programmable. • Latch or Pulse relay function. • ModBus RTU protocol. • Batch counter per each channel. • Slow-Down function. • Track-auto function. • Programming lockout by software (13 levels).
