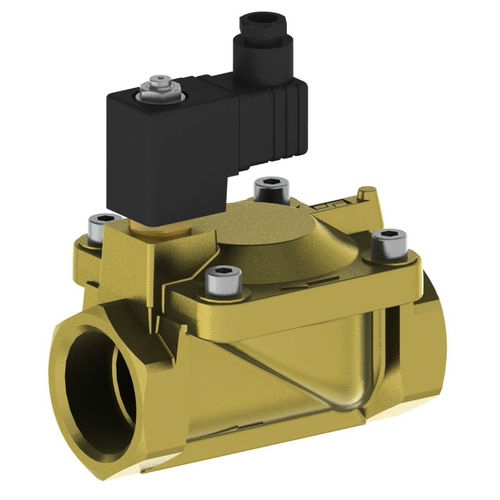

Pilot-operated solenoid valve 2402-wayNCfor water
Add to favorites
Compare this product
fo_shop_gate_exact_title
Characteristics
- Control
- pilot-operated
- Ports/positions
- 2-way
- Function
- NC
- Medium
- for water
- Body
- seat, brass, stainless steel
- Other characteristics
- diaphragm
- DN
Max.: 50 mm
(1.969 in)Min.: 13 mm
(0.512 in)- Voltage
24 V, 230 V
- Temperature
Max.: 130 °C
(266 °F)Min.: -20 °C
(-4 °F)- Pressure
Max.: 16 bar
(232.1 psi)Min.: 0.5 bar
(7.3 psi)
Description
• Seat valve with diaphragm
• Pilot operation.
• Closed without current (NC)
• Special joints NBR FKM, EPDM
• Material: brass, stainless steel
