Electric forklift B series
ride-onhandling3-wheel

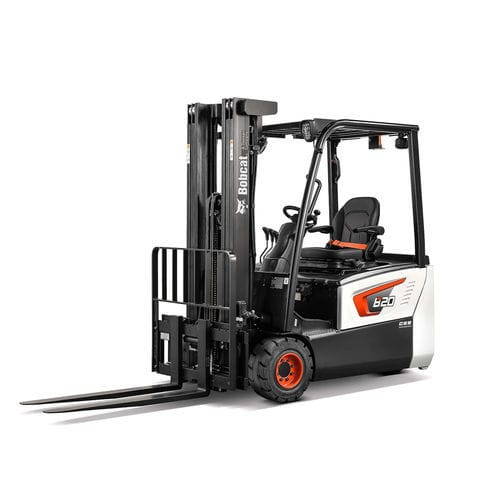

Electric forklift - B series - Doosan Industrial Vehicles - ride-on / handling / 3-wheel
Electric forklift - B series - Doosan Industrial Vehicles - ride-on / handling / 3-wheel
Electric forklift - B series - Doosan Industrial Vehicles - ride-on / handling / 3-wheel - image - 2
Electric forklift - B series - Doosan Industrial Vehicles - ride-on / handling / 3-wheel - image - 3
Electric forklift - B series - Doosan Industrial Vehicles - ride-on / handling / 3-wheel - image - 4
Electric forklift - B series - Doosan Industrial Vehicles - ride-on / handling / 3-wheel - image - 5
Electric forklift - B series - Doosan Industrial Vehicles - ride-on / handling / 3-wheel - image - 6
Electric forklift - B series - Doosan Industrial Vehicles - ride-on / handling / 3-wheel - image - 7
Add to favorites
Compare this product

Characteristics

Motor type
electric
Operator
ride-on
Applications
handling
Other characteristics
high-performance, 3-wheel
Carrying capacity

1,500 kg, 1,750 kg, 2,000 kg
(3,306.9 lb, 3,858.1 lb, 4,409.2 lb)

Lifting height

Min.: 3,000 mm
(118.11 in)

Max.: 7,020 mm
(276.38 in)

Overall width

1,090 mm
(42.9 in)

Overall length

2,791 mm
(109.9 in)

Load center distance

500 mm
(19.7 in)

Weight without load

3,028 kg, 3,142 kg, 3,472 kg
(6,675.6 lb, 6,926.9 lb, 7,654.4 lb)

Axle loading with maximum load front

3,988 kg, 4,358 kg, 4,841 kg
(8,792 lb, 9,607.7 lb, 10,672.6 lb)

Axle loading with maximum load rear

534 kg, 540 kg, 631 kg
(1,177.3 lb, 1,190.5 lb, 1,391.1 lb)

Axle loading without load front

1,495 kg, 1,530 kg, 1,623 kg
(3,295.9 lb, 3,373.1 lb, 3,578.1 lb)

Axle loading without load rear

1,533 kg, 1,612 kg, 1,849 kg
(3,379.7 lb, 3,553.9 lb, 4,076.3 lb)

Track width front

902 mm, 912 mm
(35.5 in, 35.9 in)

Track width rear

167 mm, 201 mm
(6.6 in, 7.9 in)

Height of mast when lowered

2,000 mm
(78.7 in)

Free lift

130 mm, 135 mm
(5.1 in, 5.3 in)

Overall height with mast raised

4,345 mm, 4,350 mm
(171.1 in, 171.3 in)

Height to top of overhead guard

2,010 mm
(79.1 in)

Seat height

919 mm
(36.2 in)

Length to fork face

1,891 mm, 1,991 mm
(74.4 in, 78.4 in)

Fork carriage width

973 mm
(38.3 in)

Ground clearance under mast with load

86 mm
(3.4 in)

Ground clearance at center of wheelbase with load

100 mm
(3.9 in)

Turning circle radius

1,515 mm, 1,615 mm, 1,648 mm
(59.6 in, 63.6 in, 64.9 in)

Travel speed

17 km/h
(10.6 mph)

Rated drawbar pull

12,749 N

Gradeability

24 %, 25 %, 26 %

Rated output

6 kW, 14 kW
(8.2 hp, 19 hp)

Maximum operating pressure

140 bar, 216 bar
(2,030.5 psi, 3,132.8 psi)

Description

Discover our dependable and reliable 7-Series Plus electric 3-wheel forklifts. With ergonomic controls and intuitive operation, these forklifts offer high-performance capabilities, operator comfort, easy maintenance, and value for money, with a low total cost of ownership. These models are available with lead-acid or lithium-ion battery options. Ergonomics Premium Seat The newly improved design offers upgraded features like improved endurance, suspension, and ease of maintenance. Fully Adjustable The operator can change the stepless adjustable column and seat to the best position that provides convenience and comfort to fit the individual's preferences. Finger Tip Controls Fast, precise, and infinitely controllable fingertip control make the 7-Series effortless and efficient. Easy and Instinctive Instrument Panel Operators can control the truck’s performance settings during operation simply by navigating the instrument panel. Productivity Battery Changing System The battery-changing system makes it easier and faster to exchange the battery. This allows multi-shift operation. Excellent Visibility The precisely designed overhead guard profile with angled roof bars provides a clear upward view while ensuring ultimate strength for safety. Optimized Steering Angle The optimized steering angle reduces the turning radius significantly, which allows for the most efficient warehouse layout. The smallest turning radius enhances productivity in tight spaces. Electro-Magnetic Automatic Parking Brake (EPB) Prevents the forklift from rolling back on the slope. This increases the safety, comfort, and productivity of the forklift driver. Machine IQ for Material Handling
