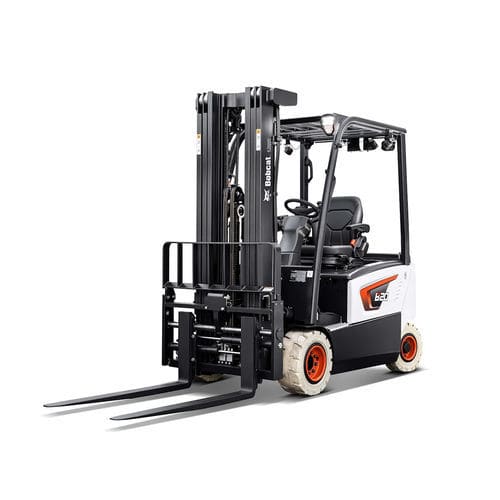

Electric forklift B series
ride-onhandlinghigh-performance

Electric forklift - B series - Doosan Industrial Vehicles - ride-on / handling / high-performance
Electric forklift - B series - Doosan Industrial Vehicles - ride-on / handling / high-performance
Electric forklift - B series - Doosan Industrial Vehicles - ride-on / handling / high-performance - image - 2
Electric forklift - B series - Doosan Industrial Vehicles - ride-on / handling / high-performance - image - 3
Electric forklift - B series - Doosan Industrial Vehicles - ride-on / handling / high-performance - image - 4
Electric forklift - B series - Doosan Industrial Vehicles - ride-on / handling / high-performance - image - 5
Electric forklift - B series - Doosan Industrial Vehicles - ride-on / handling / high-performance - image - 6
Electric forklift - B series - Doosan Industrial Vehicles - ride-on / handling / high-performance - image - 7
Add to favorites
Compare this product

Characteristics

Motor type
electric
Operator
ride-on
Applications
handling
Other characteristics
high-performance
Carrying capacity

1,600 kg, 1,800 kg, 2,000 kg
(3,527.4 lb, 3,968.3 lb, 4,409.2 lb)

Lifting height

Max.: 6,000 mm
(236.22 in)

Min.: 2,700 mm
(106.3 in)

Overall width

1,090 mm, 1,119 mm
(42.9 in, 44.1 in)

Overall length

3,020 mm, 3,025 mm
(118.9 in, 119.1 in)

Load center distance

500 mm
(19.7 in)

Weight without load

3,189 kg, 3,281 kg, 3,461 kg
(7,030.5 lb, 7,233.4 lb, 7,630.2 lb)

Axle loading with maximum load front

4,235 kg, 4,551 kg, 4,871 kg
(9,336.6 lb, 10,033.2 lb, 10,738.7 lb)

Axle loading with maximum load rear

530 kg, 553 kg, 590 kg
(1,168.4 lb, 1,219.2 lb, 1,300.7 lb)

Axle loading without load front

1,689 kg, 1,692 kg, 1,696 kg
(3,723.6 lb, 3,730.2 lb, 3,739 lb)

Axle loading without load rear

1,491 kg, 1,585 kg, 1,769 kg
(3,287.1 lb, 3,494.3 lb, 3,900 lb)

Track width front

902 mm, 912 mm
(35.5 in, 35.9 in)

Track width rear

890 mm
(35 in)

Height of mast when lowered

2,150 mm
(84.6 in)

Free lift

130 mm, 135 mm
(5.1 in, 5.3 in)

Overall height with mast raised

4,345 mm, 4,350 mm
(171.1 in, 171.3 in)

Height to top of overhead guard

2,010 mm
(79.1 in)

Seat height

919 mm
(36.2 in)

Length to fork face

2,120 mm, 2,125 mm
(83.5 in, 83.7 in)

Fork carriage width

973 mm
(38.3 in)

Ground clearance under mast with load

86 mm
(3.4 in)

Ground clearance at center of wheelbase with load

100 mm
(3.9 in)

Turning circle radius

494 mm, 496 mm, 1,886 mm
(19.4 in, 19.5 in, 74.3 in)

Travel speed

17 km/h
(10.6 mph)

Rated drawbar pull

12,749 N

Gradeability

24 %, 25 %, 26 %

Rated output

6 kW, 14 kW
(8.2 hp, 19 hp)

Maximum operating pressure

140 bar
(2,030.5 psi)

Description

Experience the excellence of our 7-Series Plus electric forklifts, renowned for their dependability and reliability. Featuring ergonomic controls for intuitive operation, these forklifts provide high-performance capabilities combined with operator comfort and a low total cost of ownership. Reduced noise levels further enhance the work environment. These models are available with lead-acid or lithium-ion battery options. Smarter Energy for a Stronger Performance Learn how Bobcat’s lithium-ion batteries can benefit your fleet—from faster charging to less maintenance and longer-lasting power. Features Ergonomics Premium Seat The newly improved design offers upgraded features like improved endurance, suspension and ease of maintenance. Fully Adjustable The operator can change the stepless adjustable column and seat to the best position that provides convenience and comfort to fit the individual preferences. Finger Tip Controls Fast, precise and infinitely controllable fingertip control makes the 7-series effortless and efficient. Easy and Instinctive Instrument Panel Operators can control the truck’s performance settings during operation, simply by navigating the instrument panel. Productivity Battery Changing System The battery changing system makes it easier and faster to exchange the battery. This allows multi-shift operation. Excellent Visibility The precisely designed overhead guard profile with angled roof bars provides a clear upward view whilst ensuring ultimate strength for safety. Electro-Magnetic Automatic Parking Brake (EPB)
