Electric forklift B series
ride-onhandlinghigh-performance

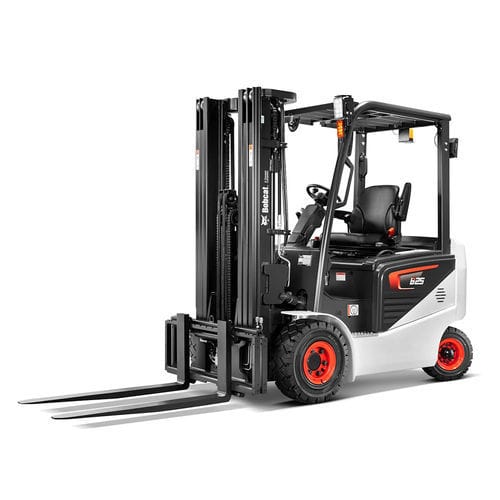

Electric forklift - B series - Doosan Industrial Vehicles - ride-on / handling / high-performance
Electric forklift - B series - Doosan Industrial Vehicles - ride-on / handling / high-performance
Electric forklift - B series - Doosan Industrial Vehicles - ride-on / handling / high-performance - image - 2
Electric forklift - B series - Doosan Industrial Vehicles - ride-on / handling / high-performance - image - 3
Electric forklift - B series - Doosan Industrial Vehicles - ride-on / handling / high-performance - image - 4
Electric forklift - B series - Doosan Industrial Vehicles - ride-on / handling / high-performance - image - 5
Electric forklift - B series - Doosan Industrial Vehicles - ride-on / handling / high-performance - image - 6
Electric forklift - B series - Doosan Industrial Vehicles - ride-on / handling / high-performance - image - 7
Electric forklift - B series - Doosan Industrial Vehicles - ride-on / handling / high-performance - image - 8
Add to favorites
Compare this product

Characteristics

Motor type
electric
Operator
ride-on
Applications
handling
Other characteristics
high-performance
Carrying capacity

2,500 kg, 3,000 kg, 3,500 kg
(5,511.6 lb, 6,613.9 lb, 7,716.2 lb)

Lifting height

Min.: 3,000 mm
(118.11 in)

Max.: 6,010 mm
(236.61 in)

Overall width

1,244 mm
(49 in)

Overall length

3,400 mm, 3,570 mm, 3,600 mm
(133.9 in, 140.6 in, 141.7 in)

Load center distance

500 mm
(19.7 in)

Weight without load

4,150 kg, 4,360 kg, 5,230 kg
(9,149.2 lb, 9,612.2 lb, 11,530.2 lb)

Axle loading with maximum load front

5,979 kg, 6,500 kg, 7,760 kg
(13,181.4 lb, 14,330 lb, 17,107.9 lb)

Axle loading with maximum load rear

671 kg, 860 kg, 970 kg
(1,479.3 lb, 1,896 lb, 2,138.5 lb)

Axle loading without load front

1,830 kg, 1,882 kg, 2,288 kg
(4,034.5 lb, 4,149.1 lb, 5,044.2 lb)

Axle loading without load rear

2,320 kg, 2,478 kg, 2,942 kg
(5,114.7 lb, 5,463.1 lb, 6,486 lb)

Track width front

1,014 mm, 1,019 mm
(39.9 in, 40.1 in)

Track width rear

995 mm
(39.2 in)

Height of mast when lowered

2,045 mm
(80.5 in)

Free lift

150 mm
(5.9 in)

Overall height with mast raised

4,247 mm
(167.2 in)

Height to top of overhead guard

2,180 mm
(85.8 in)

Seat height

1,183 mm
(46.6 in)

Length to fork face

2,350 mm
(92.5 in)

Fork carriage width

1,102 mm, 1,116 mm
(43.4 in, 43.9 in)

Ground clearance under mast with load

140 mm
(5.5 in)

Ground clearance at center of wheelbase with load

125 mm
(4.9 in)

Turning circle radius

2,060 mm
(81.1 in)

Travel speed

14 km/h
(8.7 mph)

Rated drawbar pull

Min.: 910 N

Max.: 14,460 N

Gradeability

15 %, 25 %, 27 %

Rated output

Min.: 9 kW
(12.2 hp)

Max.: 16.6 kW
(22.6 hp)

Maximum operating pressure

200 bar
(2,900.8 psi)

Noise level

68 dB

Description

Introducing the NXE-Series electric forklifts, equipped with ergonomic controls for intuitive operation. These reliable and dependable forklifts deliver high-performance capabilities while ensuring operator comfort. Experience easy maintenance and excellent value for money, resulting in a low total cost of ownership. These models are available with lead-acid or lithium-ion battery options. Simple. Tough. Ready. Lead-acid or Li-Ion power with IP54-rated motors for cold, damp, dusty sites down to -20 °C. Low-profile battery and H-type axle lower the center of gravity for high residuals above 4 m. Safety First Guardian Stability System and EPB support secure stops. NFC start lets only authorized operators drive. Easy access keeps daily checks quick. Stable Power, Every Shift See the NXE handle tough shifts with sealed components and stable, efficient power you can trust. Ergonomically Designed Hydraulic Levers with F/R Switch The forward and backward switches are located on the hydraulic lever, which makes it more convenient to switch directions with less movement. Productivity Excellent Visibility Improved layout of mast chains and structures provide excellent front visibility. The front cowl height is lowered to reduce blind spots. The overhead guard thickness and layout are improved for wide visibility.
