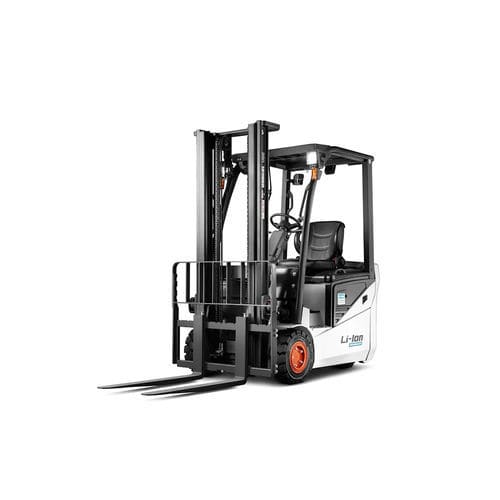

Electric forklift B series
ride-onhandlingprecision

Electric forklift - B series - Doosan Industrial Vehicles - ride-on / handling / precision
Electric forklift - B series - Doosan Industrial Vehicles - ride-on / handling / precision
Electric forklift - B series - Doosan Industrial Vehicles - ride-on / handling / precision - image - 2
Electric forklift - B series - Doosan Industrial Vehicles - ride-on / handling / precision - image - 3
Electric forklift - B series - Doosan Industrial Vehicles - ride-on / handling / precision - image - 4
Electric forklift - B series - Doosan Industrial Vehicles - ride-on / handling / precision - image - 5
Electric forklift - B series - Doosan Industrial Vehicles - ride-on / handling / precision - image - 6
Electric forklift - B series - Doosan Industrial Vehicles - ride-on / handling / precision - image - 7
Add to favorites
Compare this product

Characteristics

Motor type
electric
Operator
ride-on
Applications
handling, precision
Other characteristics
3-wheel
Carrying capacity

1,600 kg, 1,800 kg, 2,000 kg
(3,527.4 lb, 3,968.3 lb, 4,409.2 lb)

Lifting height

Max.: 1,719 mm
(67.68 in)

Min.: 105 mm
(4.13 in)

Overall width

1,090 mm
(42.9 in)

Overall length

3,060 mm, 3,190 mm
(120.5 in, 125.6 in)

Load center distance

500 mm
(19.7 in)

Weight without load

3,000 kg, 3,200 kg, 3,510 kg
(6,613.9 lb, 7,054.8 lb, 7,738.2 lb)

Axle loading with maximum load front

4,110 kg, 4,840 kg
(9,061 lb, 10,670.4 lb)

Axle loading with maximum load rear

490 kg, 670 kg
(1,080.3 lb, 1,477.1 lb)

Axle loading without load front

1,390 kg, 1,510 kg, 1,700 kg
(3,064.4 lb, 3,329 lb, 3,747.9 lb)

Axle loading without load rear

1,610 kg, 1,690 kg, 1,810 kg
(3,549.4 lb, 3,725.8 lb, 3,990.4 lb)

Track width front

960 mm, 984 mm
(37.8 in, 38.7 in)

Track width rear

216 mm
(8.5 in)

Height of mast when lowered

1,995 mm
(78.5 in)

Free lift

105 mm, 110 mm
(4.1 in, 4.3 in)

Overall height with mast raised

3,986 mm
(156.9 in)

Height to top of overhead guard

2,060 mm
(81.1 in)

Seat height

1,030 mm
(40.6 in)

Tow couplig height

490 mm
(19.3 in)

Length to fork face

1,990 mm, 2,120 mm
(78.3 in, 83.5 in)

Fork carriage width

1,040 mm
(40.9 in)

Ground clearance under mast with load

110 mm
(4.3 in)

Ground clearance at center of wheelbase with load

105 mm
(4.1 in)

Turning circle radius

1,560 mm, 1,680 mm
(61.4 in, 66.1 in)

Travel speed

15 km/h
(9.3 mph)

Lifting speed

0.4 m/s, 0.42 m/s, 0.43 m/s, 0.5 m/s
(1.312 ft/s, 1.378 ft/s, 1.411 ft/s, 1.64 ft/s)

Lowering speed

0.5 m/s
(1.64 ft/s)

Rated drawbar pull

1,020 kgf, 1,071 kgf, 1,122 kgf, 1,173 kgf, 1,326 kgf

Gradeability

15 %, 20 %

Rated output

5.5 kW, 12 kW
(7.5 hp, 16.3 hp)

Maximum operating pressure

17.5 MPa

Noise level

73 dB

Description

Meet the B18NT-Series Electric Forklifts! These 3-wheel machines deliver strong lifting power, smooth stability, and fast-charging lithium-ion batteries. With user-friendly controls and features like bright LED lights and wet disc brakes, they’re built to keep your business moving forward. Power That Performs Choose from multiple driving modes for power or efficiency. With smooth handling and strong performance, the B18NT-Series delivers precision in all conditions—with capacity up to 3,000 kg and lift heights up to 6,000 mm. Tough and Trusted The B18NT-Series forklifts are built to last, with durable components and lithium-ion batteries that deliver dependable power. Maintenance is quick and simple, helping you save time, reduce costs, and stay productive year after year. Simply Smooth Operation Intuitive controls, a vibrant display, and Hill Start Assist give you the confidence to handle any job—delivering smooth operation from start to finish. Simplify Every Shift Quick to Start, Easy to Handle Focus on your work, not complicated controls with B18NT-Series forklifts! Operator-Friendly Controls Classic deck-mounted levers are conveniently positioned next to the driver, reducing fatigue and making operation smooth and straightforward. Bright, Clear Display The vibrant color display provides quick, at-a-glance information and basic diagnostics, making it simple to keep track of your machine’s performance. Precision at Your Fingertips Optional fingertip console for lighter, more precise handling. Quiet, Powerful, Reliable
