Electric forklift B series
ride-onhandlingprecision

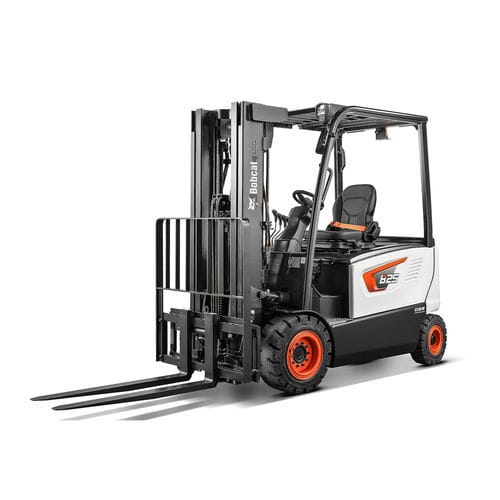

Electric forklift - B series - Doosan Industrial Vehicles - ride-on / handling / precision
Electric forklift - B series - Doosan Industrial Vehicles - ride-on / handling / precision
Electric forklift - B series - Doosan Industrial Vehicles - ride-on / handling / precision - image - 2
Electric forklift - B series - Doosan Industrial Vehicles - ride-on / handling / precision - image - 3
Electric forklift - B series - Doosan Industrial Vehicles - ride-on / handling / precision - image - 4
Electric forklift - B series - Doosan Industrial Vehicles - ride-on / handling / precision - image - 5
Electric forklift - B series - Doosan Industrial Vehicles - ride-on / handling / precision - image - 6
Electric forklift - B series - Doosan Industrial Vehicles - ride-on / handling / precision - image - 7
Add to favorites
Compare this product

Characteristics

Motor type
electric
Operator
ride-on
Applications
handling, precision
Other characteristics
low-noise
Carrying capacity

2,500 kg, 3,000 kg, 3,500 kg
(5,511.6 lb, 6,613.9 lb, 7,716.2 lb)

Lifting height

Max.: 8,250 mm
(324.8 in)

Min.: 2,720 mm
(107.09 in)

Overall width

1,245 mm
(49 in)

Overall length

3,379 mm, 3,530 mm, 3,614 mm
(133 in, 139 in, 142.3 in)

Load center distance

500 mm
(19.7 in)

Weight without load

4,623 kg, 5,068 kg, 5,486 kg
(10,192 lb, 11,173 lb, 12,094.6 lb)

Axle loading with maximum load front

6,275 kg, 7,197 kg, 7,940 kg
(13,834 lb, 15,866.7 lb, 17,504.7 lb)

Axle loading with maximum load rear

848 kg, 870 kg, 1,046 kg
(1,869.5 lb, 1,918 lb, 2,306 lb)

Axle loading without load front

2,284 kg, 2,532 kg, 2,547 kg
(5,035.4 lb, 5,582.1 lb, 5,615.2 lb)

Axle loading without load rear

2,339 kg, 2,521 kg, 2,954 kg
(5,156.6 lb, 5,557.9 lb, 6,512.5 lb)

Track width front

998 mm
(39.3 in)

Track width rear

998 mm
(39.3 in)

Height of mast when lowered

2,160 mm
(85 in)

Free lift

147 mm, 152 mm
(5.8 in, 6 in)

Overall height with mast raised

3,760 mm, 3,990 mm
(148 in, 157.1 in)

Height to top of overhead guard

2,185 mm, 2,210 mm
(86 in, 87 in)

Seat height

1,070 mm
(42.1 in)

Length to fork face

2,329 mm, 2,480 mm, 2,564 mm
(91.7 in, 97.6 in, 100.9 in)

Fork carriage width

1,103 mm, 1,115 mm
(43.4 in, 43.9 in)

Ground clearance under mast with load

130 mm
(5.1 in)

Ground clearance at center of wheelbase with load

140 mm
(5.5 in)

Turning circle radius

340 mm, 348 mm, 1,950 mm, 2,095 mm, 2,155 mm
(13.4 in, 13.7 in, 76.8 in, 82.5 in, 84.8 in)

Travel speed

16 km/h
(9.9 mph)

Rated drawbar pull

16,426 N, 17,338 N

Gradeability

Max.: 38 %

Min.: 20 %

Maximum operating pressure

155 bar, 199 bar
(2,248.1 psi, 2,886.3 psi)

Description

Unleash the power of the 7-Series Plus (80V) electric forklifts, upgraded with advanced features, high power, and precision. With reduced maintenance costs, unbeatable performance, and adjustable parameters for maximum control, these machines are ready for any challenge. Power, reliability, and efficiency – combined in one exceptional category. These models are available with lead-acid or lithium-ion battery options. Efficient by Design Choose lead-acid batteries with quick side battery changes or lithium-ion batteries which support fast charging. Whatever your preference, the 7-Series Plus electric forklifts boast premium-quality and dependable power that keeps going, shift after shift. Smart Safety: Built-In Safety comes standard with Operator Sensing System, Hill Start Assist, Electric Parking Brake, Electric Foot Brake and mast sway control that cuts speed and stabilises the mast at height for confident, secure handling. Made to Go the Distance Reliable AC controller, sealed components and an extra motor cover increase durability. A central cooling fan manages heat for consistent, long-life performance. Ergonomics Premium Seat The newly improved design offers upgraded features like improved endurance, suspension, and ease of maintenance. Reduced Noise Level The use of a low-noise drive axle and sound suppression system has greatly improved the driving noise, allowing operators to work more comfortably. The noise levels of the current models were reduced in comparison to previous models, bringing the perceived sound intensity from 70 to 68 dBA. Finger Tip Controls
