Electric forklift B series
ride-onhandling4-wheel

Electric forklift - B series - Doosan Industrial Vehicles - ride-on / handling / 4-wheel
Electric forklift - B series - Doosan Industrial Vehicles - ride-on / handling / 4-wheel
Electric forklift - B series - Doosan Industrial Vehicles - ride-on / handling / 4-wheel - image - 2
Electric forklift - B series - Doosan Industrial Vehicles - ride-on / handling / 4-wheel - image - 3
Electric forklift - B series - Doosan Industrial Vehicles - ride-on / handling / 4-wheel - image - 4
Electric forklift - B series - Doosan Industrial Vehicles - ride-on / handling / 4-wheel - image - 5
Electric forklift - B series - Doosan Industrial Vehicles - ride-on / handling / 4-wheel - image - 6
Electric forklift - B series - Doosan Industrial Vehicles - ride-on / handling / 4-wheel - image - 7
Electric forklift - B series - Doosan Industrial Vehicles - ride-on / handling / 4-wheel - image - 8
Electric forklift - B series - Doosan Industrial Vehicles - ride-on / handling / 4-wheel - image - 9
Electric forklift - B series - Doosan Industrial Vehicles - ride-on / handling / 4-wheel - image - 10
Add to favorites
Compare this product

Characteristics

Motor type
electric
Operator
ride-on
Applications
handling
Other characteristics
4-wheel, high-performance
Carrying capacity

8,000 kg, 10,000 kg
(17,637 lb, 22,046.2 lb)

Lifting height

Min.: 3,300 mm
(129.92 in)

Max.: 7,000 mm
(275.59 in)

Overall width

1,760 mm, 1,930 mm
(69.3 in, 76 in)

Overall length

5,100 mm, 5,700 mm
(200.8 in, 224.4 in)

Weight without load

13,830 kg, 15,880 kg
(30,489.9 lb, 35,009.4 lb)

Axle loading with maximum load front

821 kg, 20,620 kg, 23,158 kg
(1,810 lb, 45,459.3 lb, 51,054.7 lb)

Axle loading with maximum load rear

2,000 kg, 2,009 kg, 2,722 kg
(4,409.2 lb, 4,429.1 lb, 6,001 lb)

Axle loading without load front

6,800 kg, 7,180 kg, 7,230 kg, 7,440 kg, 8,650 kg
(14,991.4 lb, 15,829.2 lb, 15,939.4 lb, 16,402.4 lb, 19,070 lb)

Axle loading without load rear

7,030 kg
(15,498.5 lb)

Track width front

1,650 mm, 1,678 mm
(65 in, 66.1 in)

Track width rear

1,622 mm, 1,650 mm
(63.9 in, 65 in)

Height of mast when lowered

2,900 mm
(114.2 in)

Overall height with mast raised

4,550 mm, 4,750 mm
(179.1 in, 187 in)

Height to top of overhead guard

2,715 mm
(106.9 in)

Seat height

1,405 mm
(55.3 in)

Length to fork face

3,900 mm
(153.5 in)

Fork carriage width

1,400 mm, 1,800 mm
(55.1 in, 70.9 in)

Ground clearance under mast with load

180 mm
(7.1 in)

Ground clearance at center of wheelbase with load

155 mm
(6.1 in)

Turning circle radius

3,150 mm
(124 in)

Travel speed

13 km/h, 14 km/h
(8.1 mph, 8.7 mph)

Gradeability

Min.: 12 %

Max.: 17 %

Maximum operating pressure

185 bar, 200 bar
(2,683.2 psi, 2,900.8 psi)

Oil flow

100 l/min
(26.4 us gal/min)

Noise level

73 dB

Description

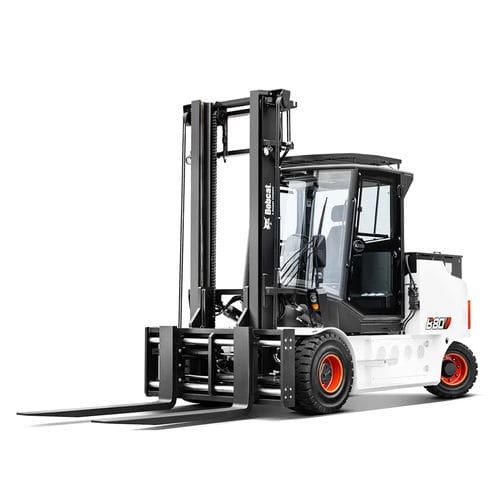

Bobcat's 8-10t 4-Wheel NXE-Series electric forklifts are high-capacity, powerful, high-performance machines, suitable for more demanding applications. With excellent visibility, many advanced comfort and productivity features as standard, and reduced total cost of ownership, these machines will give your business a boost. All-Electric Muscle with Massive Capacity Run a full shift with flexible battery exchange and capacities to match your job. A 96 V AC system and strong drive motor deliver smooth, quiet power and rock-solid stability. Spacious Cab, 360° View Get all-around views and a clear roof sightline. The Magnifica cabin adds fingertip controls, a deluxe Grammer seat and HVAC. Made for long, focused days. Low-Maintenance by Design Cut TCO by moving from diesel to electric. A tilting cabin gives fast access, and a detachable backplate makes battery swaps smooth, keeping uptime high. Ergonomics Adjustable Column The steering column is adjustable in vertical and horizontal directions according to the driver’s preference and comfort. Spacious Operator Leg Room The thick and large rubber floor mat, rounded hood, and spacious legroom offer great comfort to the operator. Premium Grammer Seats The full-suspension (air suspension optional) comfort seat is fully adjustable to accommodate all individual preferences. Low Seat Position (Full Cabin) Easy to hop on and off thanks to the high headroom, the operator has a very spacious operator space at his disposal. Productivity 360 ° Visibility
