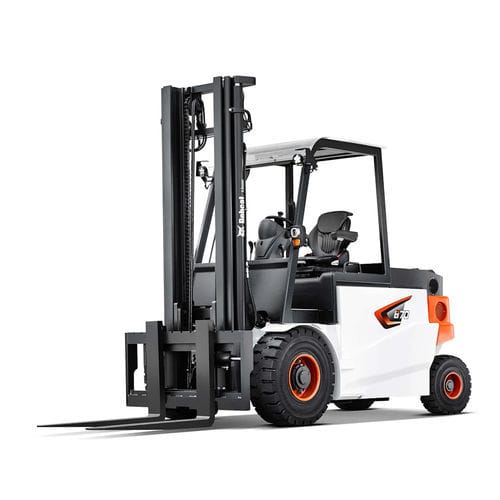

Electric forklift B series
ride-onhandling4-wheel

Electric forklift - B series - Doosan Industrial Vehicles - ride-on / handling / 4-wheel
Electric forklift - B series - Doosan Industrial Vehicles - ride-on / handling / 4-wheel
Electric forklift - B series - Doosan Industrial Vehicles - ride-on / handling / 4-wheel - image - 2
Electric forklift - B series - Doosan Industrial Vehicles - ride-on / handling / 4-wheel - image - 3
Electric forklift - B series - Doosan Industrial Vehicles - ride-on / handling / 4-wheel - image - 4
Electric forklift - B series - Doosan Industrial Vehicles - ride-on / handling / 4-wheel - image - 5
Electric forklift - B series - Doosan Industrial Vehicles - ride-on / handling / 4-wheel - image - 6
Electric forklift - B series - Doosan Industrial Vehicles - ride-on / handling / 4-wheel - image - 7
Add to favorites
Compare this product

Characteristics

Motor type
electric
Operator
ride-on
Applications
handling
Other characteristics
4-wheel
Carrying capacity

6,000 kg, 7,000 kg, 8,000 kg
(13,227.7 lb, 15,432.4 lb, 17,637 lb)

Lifting height

Max.: 7,000 mm
(275.59 in)

Min.: 3,300 mm
(129.92 in)

Overall width

1,535 mm, 1,650 mm
(60.4 in, 65 in)

Overall length

4,325 mm, 4,425 mm, 4,525 mm
(170.3 in, 174.2 in, 178.1 in)

Load center distance

600 mm
(23.6 in)

Weight without load

10,530 kg, 11,430 kg, 12,860 kg
(23,214.7 lb, 25,198.8 lb, 28,351.4 lb)

Axle loading with maximum load front

14,854 kg, 16,539 kg, 18,829 kg
(32,747.5 lb, 36,462.3 lb, 41,510.8 lb)

Axle loading with maximum load rear

1,675 kg, 1,891 kg, 2,031 kg
(3,692.7 lb, 4,168.9 lb, 4,477.6 lb)

Axle loading without load front

5,300 kg, 5,580 kg, 6,500 kg
(11,684.5 lb, 12,301.8 lb, 14,330 lb)

Axle loading without load rear

5,230 kg, 5,850 kg, 6,360 kg
(11,530.2 lb, 12,897 lb, 14,021.4 lb)

Track width front

1,235 mm, 1,318 mm
(48.6 in, 51.9 in)

Track width rear

1,150 mm, 1,160 mm
(45.3 in, 45.7 in)

Height of mast when lowered

2,715 mm, 2,900 mm
(106.9 in, 114.2 in)

Overall height with mast raised

4,325 mm, 4,535 mm, 4,550 mm
(170.3 in, 178.5 in, 179.1 in)

Height to top of overhead guard

2,465 mm
(97 in)

Seat height

1,415 mm
(55.7 in)

Length to fork face

3,125 mm, 3,225 mm, 3,325 mm
(123 in, 127 in, 130.9 in)

Fork carriage width

1,400 mm
(55.1 in)

Ground clearance under mast with load

180 mm
(7.1 in)

Ground clearance at center of wheelbase with load

210 mm
(8.3 in)

Turning circle radius

2,715 mm, 2,915 mm, 3,215 mm
(106.9 in, 114.8 in, 126.6 in)

Travel speed

15 km/h
(9.3 mph)

Gradeability

13 %, 15 %, 16 %, 17 %, 18 %

Maximum operating pressure

150 bar, 170 bar
(2,175.6 psi, 2,465.6 psi)

Oil flow

80 l/min
(21.1 us gal/min)

Noise level

70 dB

Description

Bobcat's 6-8t 4-Wheel NXE-Series electric forklifts are designed for single shifts and lower energy demand, offering many advanced comfort and productivity features as standard at competitive prices with a low total cost of ownership. Easy access, good visibility, and effortless driving further enhance efficiency and operator comfort. Features Ergonomics Adjustable Column The steering column is adjustable in vertical and horizontal directions according to the driver’s preferences to ensure maximum comfort. Spacious Operator Leg Room The thick and large rubber floor mat, rounded hood, and spacious legroom offer great comfort for the operator. Premium Grammar The full suspension comfort seat (with optional air suspension) is fully adjustable to accommodate all individual preferences. USB Socket USB socket available as standard. Productivity 360 ° Visibility 360-degree visibility thanks to the large glass around the operator. The high visibility makes driving a forklift with a load safer and contributes to even better productivity and driving experience. Oil-Cooled Disc Brakes The oil-cooled disc brake system is totally enclosed for maximum protection against contamination. This maintenance free system ensures maximum uptime, less damage, and zero cost for you. Dual Drive Motor The 80V electronic management of bi-traction motors, lifting motor, pump, and steering gives you the performance you need during your shift.h applications.
