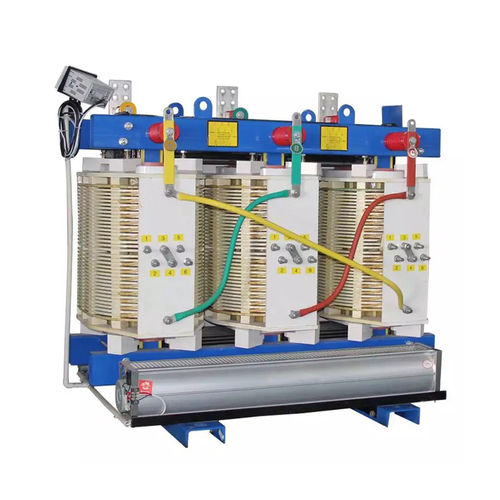

Power transformer SGBelectrical power supplydryindustrial
Add to favorites
Compare this product
Characteristics
- Type
- power, electrical power supply
- Configuration
- dry
- Applications
- industrial, for industrial applications, for indoor service, for electrical networks, substation, for mining equipment, for medical applications, for inverters, for data centers
- Electrical characteristics
- three-phase, medium-voltage
- Mounting
- floor-standing, pad-mount
- Norms
- IEC, UL, ANSI, TUV
- Other characteristics
- primary, with copper windings, vacuum impregnation, low-loss, K-factor, phase-shifting, air-insulated, two-winding
- Output power kVA
Max.: 2,500 kVA
(3,399.052888 hp)Min.: 100 kVA
(135.962116 hp)- Primary voltage
10 kV
- Secondary voltage
0.4 kV
Description
• IEC 60076-11, ANSI/IEEE Std C57.12.01, NEMA
• ISO 9001, KEMA, CESI, CE, TUV, UL, ASTA
• Seismic design, ETGI-1.020, IEEE Std 693, NCh2369
• Structural design, ASTM A325, ANSI/AISC 360, AWS D1.1
• High altitude correction per IEC 60076 & IEEE C57.12, ~ 5000m
