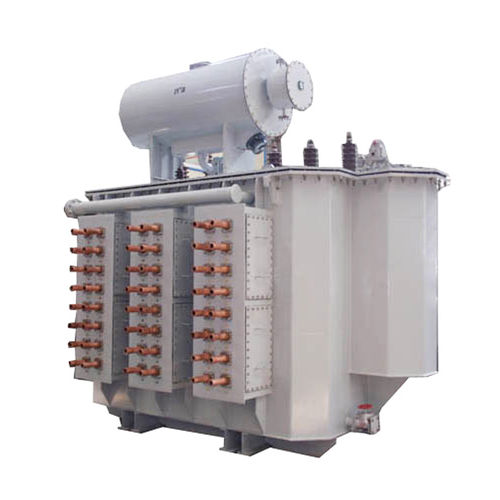

Current transformer HSSPZpowerelectrical power supplyimmersed
Add to favorites
Compare this product
Characteristics
- Type
- current, power, electrical power supply
- Configuration
- immersed
- Applications
- electric arc furnace
- Electrical characteristics
- three-phase, high-voltage
- Mounting
- floor-standing, pad-mount
- Norms
- IEC, UL, ANSI, TUV
- Other characteristics
- with copper windings, short-circuit, high-current, water-cooled, K-factor
- Output power kVA
Max.: 200,000 kVA
(271,924.231032 hp)Min.: 1,500 kVA
(2,039.431733 hp)- Primary voltage
Max.: 66 kV
Min.: 35 kV
- Secondary voltage
13.2 kV
Description
• IEC 60076, ANSI/IEEE Std C57.12, NEMA
• ISO 9001, KEMA, CESI, CE, TUV, UL, ASTA
• Mineral Oil / Vegetable Oil (FR3), Free PCB
• Cooling Type: ONAN / ONAF / OFAF / OFWF
• Gas factories, Steel plants, Calcium carbide industrie
• Seismic design, ETGI-1.020, IEEE Std 693, NCh2369
• Structural design, ASTM A325, ANSI/AISC 360, AWS D1.1
• High altitude correction per IEC 60076 & IEEE C57.12, ~ 5000m
• Electric Arc & Ladle Furnace, Submerged Arc Furnace, Induction Furnace
