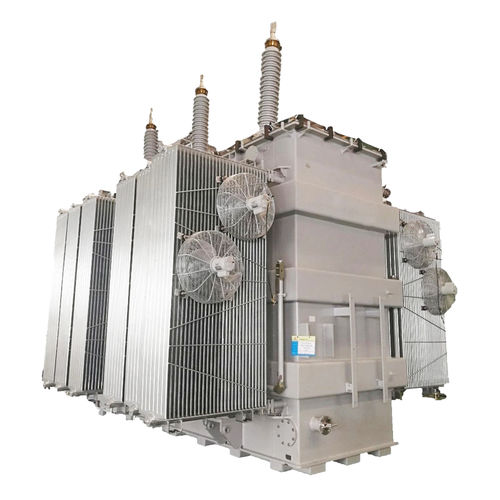

Power transformer S-QYelectrical power supplyimmersedfor industrial applications
Add to favorites
Compare this product
Characteristics
- Type
- power, electrical power supply
- Configuration
- immersed
- Applications
- for industrial applications, for electrical networks, substation, railway, for mining equipment, high-power, for inverters, for automotive applications
- Electrical characteristics
- single-phase, three-phase, high-voltage
- Mounting
- floor-standing, pad-mount
- Norms
- IEC, UL, ANSI, TUV
- Other characteristics
- with copper windings, K-factor, phase-shifting, with double secondary, with harmonic cancellation
- Output power kVA
Min.: 20,000 kVA
(27,192.423103 hp)Max.: 40,000 kVA
(54,384.846206 hp)- Primary voltage
55 kV, 88 kV, 110 kV, 132 kV, 220 kV
- Secondary voltage
13.2 kV
Description
• IEC 60076, ANSI/IEEE Std C57.12, NEMA
• ISO 9001, KEMA, CESI, CE, TUV, UL, ASTA
• Mineral Oil / Vegetable Oil (FR3), Free PCB
• Seismic design, ETGI-1.020, IEEE Std 693, NCh2369
• Structural design, ASTM A325, ANSI/AISC 360, AWS D1.1
• High altitude correction per IEC 60076 & IEEE C57.12, ~ 5000m
• In each substation to enhance rail power absorption effect
• 3 phase / 2 phase impedance matching balance connection
