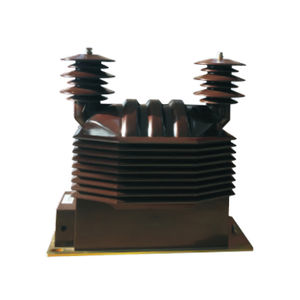

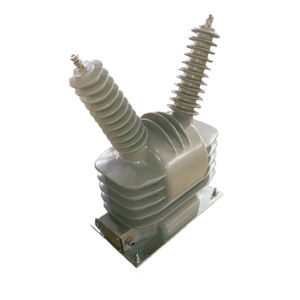

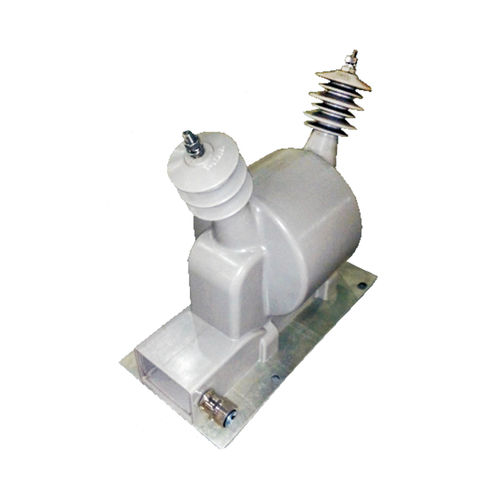

Instrument transformer JDZW-12measurementencapsulatedindustrial
Add to favorites
Compare this product
Characteristics
- Type
- instrument, measurement
- Configuration
- encapsulated
- Applications
- industrial, for electrical networks, protection, for energy meters, substation, for outdoor service
- Electrical characteristics
- single-phase, voltage, medium-voltage, inductive voltage
- Mounting
- floor-standing
- Norms
- IEC, UL, ANSI
- Other characteristics
- protection, epoxy resin, control, high-accuracy, multi-winding
- Primary voltage
12 kV
- Secondary voltage
Max.: 220 V
Min.: 110 V
Description
• IEC 61869, ANSI/IEEE C57.13, NEMA
• ISO 9001, KEMA, CESI, CE, TUV, UL, ASTA
• Seismic design, ETGI-1.020, IEEE Std 693, NCh2369
• Structural design, ASTM A325, ANSI/AISC 360, AWS D1.1
• High altitude correction per IEC 61869 & IEEE C57, ~ 5000m
• High Quality Epoxy Resin Insulation, Low partial discharge, High accuracy
• Accuracy classes 0.1, 0.2, 0.5, 1.0, 3.0, 3P, 6P or 0.15, 0.3, 0.6, 1.2 (IEEE)
