Primary switchgear ZHW-245
short-circuithigh-voltageswitching

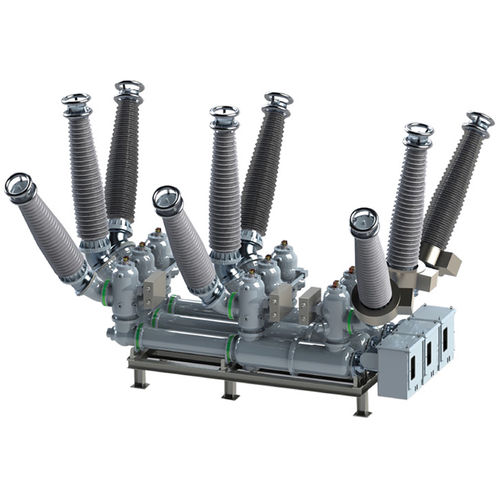

Primary switchgear - ZHW-245 - Dowei Electric - short-circuit / high-voltage / switching
Primary switchgear - ZHW-245 - Dowei Electric - short-circuit / high-voltage / switching
Add to favorites
Compare this product
Go to the Dowei Electric website for more information

Characteristics

Type
primary
Electrical characteristics
insulated, high-voltage, short-circuit, switching, heavy-duty, with overcurrent protection
Configuration
compact, SF6 gas-insulated, hybrid
Applications
circuit breaker, industrial, for power plants, power distribution
Other characteristics
modular
Primary current

3,150 A, 4,000 A

VAC

245 kV

Description

• IEC 62271, ANSI/IEEE Std C37, NEMA • ISO 9001, KEMA, CESI, CE, TUV, UL, ASTA • Seismic design, ETGI-1.020, IEEE Std 693, NCh2369 • Structural design, ASTM A325, ANSI/AISC 360, AWS D1.1 • High altitude correction per IEC 62271 & IEEE C37, ~ 5000m • High reliability, smart, compact and economic switchgear solutions • Plug And Switch System (PASS) switchgear is a compact hybrid switchgear • Delivered fully assembled and tested, ready for rapid installation and energization • Modular design enables highly customizable solutions in a short manufacturing time

Catalogs

Go to the Dowei Electric website for more information

Other Dowei Electric products

Switchgear | Hybrid Gas Insulated Switchgear (HGIS)
