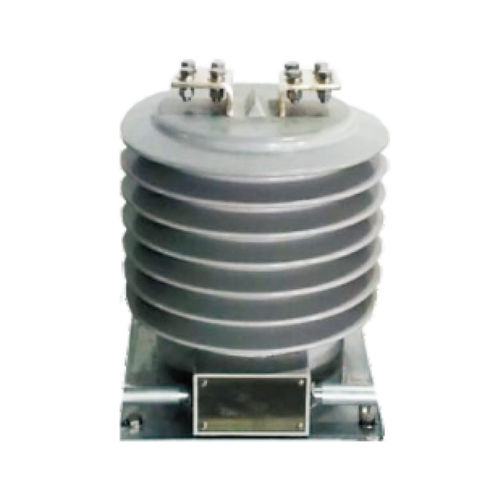

Current transformer LZZW-24instrumentmeasurementdry
Add to favorites
Compare this product
Characteristics
- Type
- current, instrument, measurement
- Configuration
- dry
- Applications
- for industrial applications, for industrial use, for electrical networks, protection, for energy meters, substation, for outdoor service
- Electrical characteristics
- single-phase
- Mounting
- floor-standing, pole-mounted
- Norms
- IEC, UL, ANSI, TUV
- Other characteristics
- protection, epoxy resin, control, high-accuracy, insulated, multi-winding
- Output power kVA
0.01 kVA, 0.015 kVA, 0.02 kVA, 0.025 kVA
(0.013596 hp, 0.020394 hp, 0.027192 hp, 0.033991 hp)- Primary voltage
Max.: 24 kV
- Secondary voltage
Max.: 220 V
Min.: 110 V
- Primary current
Max.: 800 A
Min.: 30 A
Description
• IEC 61869, ANSI/IEEE C57.13, NEMA
• ISO 9001, KEMA, CESI, CE, TUV, UL, ASTA
• Seismic design, ETGI-1.020, IEEE Std 693, NCh2369
• Structural design, ASTM A325, ANSI/AISC 360, AWS D1.1
• High altitude correction per IEC 61869 & IEEE C57, ~ 5000m
• High Quality Epoxy Resin Insulation, Low partial discharge, High accuracy
• Special accuracy classes PR, PX, PXR, TPX, TPY, TPZ or C 100-800 (IEEE), etc..
