Laboratory pump JP-140 PVDF (HC)impellerfor chemicalswith electric motor
Add to favorites
Compare this product
Characteristics
- Technology
- impeller
- Fluid
- for chemicals
- Operation
- with electric motor
- Priming
- submersible
- Mobility
- stationary
- Domain
- laboratory
- Applications
- cooling, for control
- Material
- PVDF
- Fluid specification
- for concentrated media
- Voltage
- 380 V
- Other characteristics
- double
- Flow
49 l/min
(12.94443 us gal/min)- Head
10 m
(32'09" )- Power
450 W
(0.61 hp)
Description

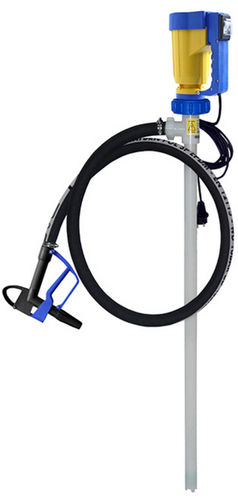

Laboratory pump set JP-140 PVDF (HC), Ø 32 mm
Universal motor JP-140, 50/60 Hz, protection class IP 24, double insulated category II, over load protection switch with low voltage release, thermo protection, 5 m cable and plug.
Pump tube:
PVDF, outer-Ø 32 mm, Hastelloy-shaft
Connection thread G 1″
Hose connection ¾” (DN 19)
2 m Multi purpose chemical hose ¾” (DN 19)
2 Hose clamps Stainless steel
1 Nozzle PVDF ¾”
