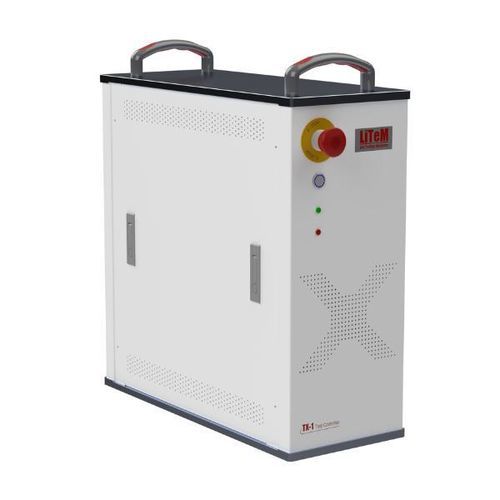

Test bench digital controller TX
Add to favorites
Compare this product
Characteristics
- Other characteristics
- for test benches
Description
Overview
The TX controller line is developed and assembled in Italy with advanced technology for precise and reliable structural mechanical testing. The controller is available as TX-1 (mono-axial) and TX-2 (bi-axial). It supports static and cyclic tests under Force, Displacement or Incremental Encoder control. An additional 4 analog read-only channels, synchronous with the active axis/axes, extend measurement capabilities. The TX controllers are designed to pair with Litem pneumatic testing machines and can be used for retrofit of existing systems.
Main features
Applications
Documentation
Brochures and PDF datasheets related to the TX controller (technical and informational material) are available.
Technical characteristics / specifications
The TX controller line is developed and assembled in Italy with advanced technology for precise and reliable structural mechanical testing. The controller is available as TX-1 (mono-axial) and TX-2 (bi-axial). It supports static and cyclic tests under Force, Displacement or Incremental Encoder control. An additional 4 analog read-only channels, synchronous with the active axis/axes, extend measurement capabilities. The TX controllers are designed to pair with Litem pneumatic testing machines and can be used for retrofit of existing systems.
Main features
- Versions: TX-1 (mono-axial) and TX-2 (bi-axial)
- Control of static and cyclic tests
- Control modes: Force, Displacement, Incremental Encoder
- 4 additional analog read-only channels, synchronized with the active axes
- Designed for integration with pneumatic machines and retrofit of existing systems
Applications
- STATIC YIELD AND FRACTURE TESTS on composites, dental implants, etc.
- STIFFNESS TESTS on individual components and assemblies made of metal, plastic, composite, 3D-printed or biological materials
- DYNAMIC TESTS with sinusoidal wave, pulse square with adjustable duty cycle, triangular at constant speed (e.g., characterization of suspensions/shock absorbers)
- CONSTANT AMPLITUDE FATIGUE TESTS for life characterization under cyclic loads and determination of Wöhler curves
- BLOCK-LOAD FATIGUE (CONSTANT AMPLITUDE) for determination of Palmgren-Miner relationship and effective damage value
- VARIABLE AMPLITUDE FATIGUE TESTS reproducing/simulating real working cycles acquired in the field
- LOAD HISTORY REPRODUCTION defined by the user during design phase, simulation of seismic tests
Documentation
Brochures and PDF datasheets related to the TX controller (technical and informational material) are available.
Technical characteristics / specifications
- Development and assembly: Italy
- Types: TX-1 (mono-axial), TX-2 (bi-axial)
- Control modes: Force, Displacement, Incremental Encoder
- Additional analog channels: 4 read-only channels, synchronous with active axes
- Applications: static tests, dynamic tests, fatigue tests, load history reproduction
- Compatibility: can be paired with Litem pneumatic machines and used for retrofit of existing systems
