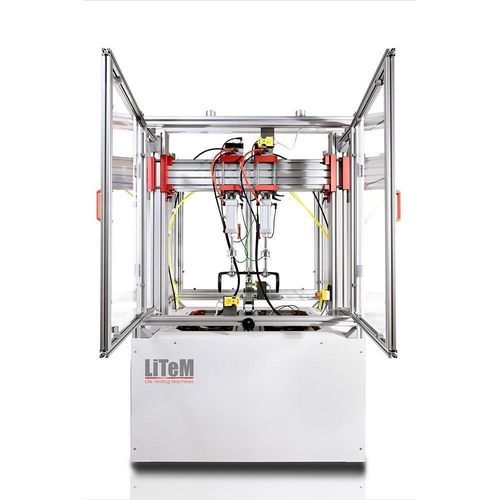

Bending testing machine BYC 200

torsionfatiguestatic load

Product overview
The BYC-200 pneumatic modular frame (PN-MF family) is an aluminium test frame engineered to perform static and fatigue tests on bicycle handlebars in compliance with ISO 4210 and EN 15194. The portal-style structure provides the stiffness required for accurate execution of handlebar and aerodynamic extension tests. The entire test area is enclosed with polycarbonate protective panels that offer clear visibility while interlocked openings ensure operator safety.

Compatibility
The frame is compatible with Litem K-PN series pneumatic actuator kits, anchoring brackets and RTC 9000 Real Time Controllers.

Utilities

• oil-free pneumatic operation
• modular, reconfigurable design for varied test setups
• ergonomic access and controls for laboratory workflows

Applications

• Handlebar stem and assembly – lateral bending test
• Handlebar stem – forward bending test
• Handlebar, stem, bar end, aerodynamic extension – torsional security test
• Handlebar and stem assembly – fatigue test
• Handlebar and stem assembly – test method for racing bicycles

Technical specifications

• Product family: PN-MF (Pneumatic Modular Frame)
• Model: BYC-200
• Construction material: aluminium (entirely)
• Designed to perform static and fatigue tests on bicycle handlebars according to ISO 4210 and EN 15194
• Portal structure provides required stiffness for handlebar and aerodynamic extension tests
• Test area enclosed with polycarbonate protective panels with interlocking openings for operator safety
• Compatible with Litem K-PN pneumatic actuator kits, anchoring brackets and RTC 9000 Real Time Controllers
• Supported tests: lateral bending, forward bending, torsional security, fatigue, racing bicycle specific method
