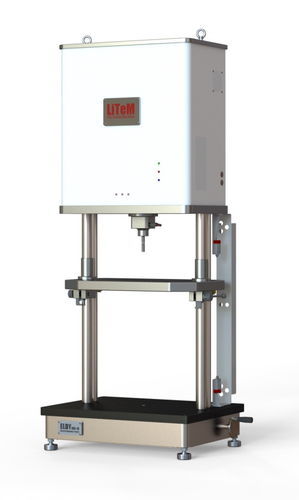

Electro-dynamic testing machine ELDY 100

transportfatigueelectric

Overview
The electrodynamic testing systems in the ELDY 100 family have been designed to run static, semi-static, dynamic and fatigue tests on a large variety of components and materials. ELDY systems use motors with voice coil technology and single-phase power supply. Combined with RTC 9001 Controller and SS 9000 software, ELDY systems allow to reach high test frequency and displacement micrometric accuracy. The intermediate plane, with electrical handling, allows a convenient and easy approach of even the most complex samples.

Utilities

• oil free
• low consumption
• low noise
• high flexibility
• table top
• simple to use

Fields of application

• Biomedical
• R&D
• Plastics
• Rubber
• 3D Printing (plastics e metals)
• Composite materials
• Electronic components and hardware
• Fabrics and tissues
• Biological matrerials

caractéristiques / spécifications techniques

• Family / model: ELDY 100 electrodynamic testing system
• Maximum force: up to 100 N
• Intended tests: static, semi-static, dynamic and fatigue tests
• Drive technology: motors with voice coil technology
• Power supply: single-phase
• Controller compatibility: RTC 9001 Controller
• Software: SS 9000
• Performance: high test frequency and micrometric displacement accuracy
• Design: intermediate plane with electrical handling for easy approach of complex samples
• Form factor: table top (available configurations)
• Operational features: oil free, low consumption, low noise, high flexibility, simple to use
