Programming software PROFILE EDITOR

data acquisition and analysiscontrolfor test

Overview

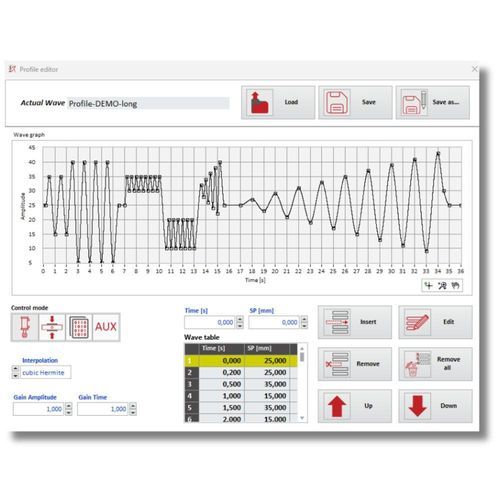

The PROFILE EDITOR tool is an add-on module for the SX software suite that enables execution of variable-profile, cyclical fatigue tests. Profiles can be generated directly in the software interface or created in an external text editor and imported quickly into the tool.

Purpose
PROFILE EDITOR is used to reproduce variable-load histories acquired from sensors and data loggers mounted on components during normal operation or field testing. It is particularly suited for standardized fatigue procedures such as ISO 4210-6 for crank arm testing.

Control modes

• Position control
• Force control
• Encoder-based control

Profile editing and execution
Gain Amplitude and Gain Time functions allow rapid scaling of profile amplitude and time base without reprogramming the full sequence. Five interpolation modes are provided to define the points that compose the profile, enabling accurate reproduction of measured curves.

Multi-axis support
PROFILE EDITOR supports TX-2 and TDX-2 multi-axis systems. Individual load histories can be assigned to each actuator and executed synchronously, with phase relationship management handled by the SX software.

Applications
Ideal for laboratory and field fatigue testing where replication of service-derived load profiles is required, including crank arm fatigue tests in accordance with ISO 4210-6.

Technical specifications

• Component of SX software suite for real-time test controllers
• Enables variable-profile, cyclical fatigue tests
• Profile creation via software interface or external text file
• Compatible control modes: Position, Force, Encoder
• Gain Amplitude and Gain Time adjustments for fast profile scaling
• Five interpolation modes for profile point definition
• Supports TX-2 and TDX-2 multi-axis systems with per-actuator profiles
• Synchronous execution and phase management between actuators
• Applicable to ISO 4210-6 crank arm fatigue testing
