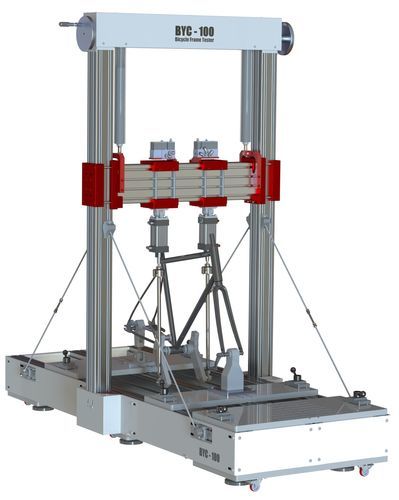

Fatigue testing machine BYC 100

for bikeframealuminiumfor laboratory

Description
The BYC-100 frame is part of the PN-MF (Pneumatic Modular Frame) family, engineered to perform static and fatigue tests on bicycle frames and components. The structure is built entirely from aluminium and is configured to carry out tests in accordance with ISO 4210 and EN 15194. An anti-vibration support enhances stability during demanding cycles, while the portal structure provides the stiffness required for accurate test execution. Wheels on the base enable safe repositioning within the test laboratory. The system is compatible with Litem K-PN pneumatic actuator kits, anchoring brackets and RTC 9000 Real Time Controllers and is designed for modular pneumatic operation.

Key features

• oil free
• low consumption
• high flexibility
• easy to use

Applications

• Fatigue test on the frame with horizontal load
• Fatigue test on the frame with vertical load
• Fatigue test on the frame with the force applied on the pedals - biaxial
• Bi-axial fatigue test on the handlebar
• Fatigue test on the front fork
• Static and fatigue test on the seat

Technical specifications

• Product family: PN-MF (Pneumatic Modular Frame)
• Model: BYC-100
• Material: aluminium construction
• Intended use: static and fatigue testing of bicycle frames and components
• Standards: tests according to ISO 4210 and EN 15194
• Support: anti-vibration support for enhanced stability
• Structure: portal structure for high stiffness during testing
• Mobility: wheels on base for laboratory movement
• Compatibility: compatible with Litem K-PN pneumatic actuator kits, anchoring brackets and RTC 9000 Real Time Controllers
