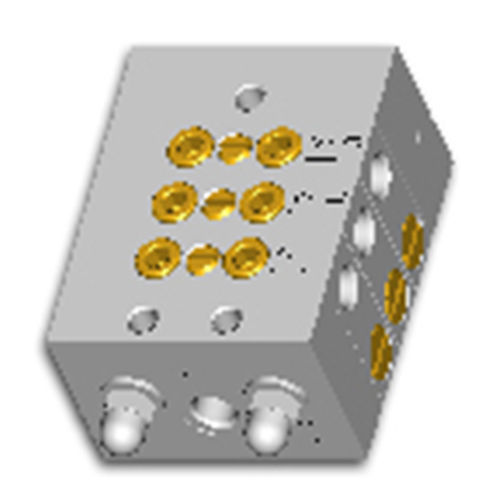

Lubricant progressive feeder SXO

greasemodularfor centralized lubrication systems

The modular progressive distributor SXO system uses a single line to distribute the lubricant. This allows full control of the system with a single control device mounted on one of the distributor elements. As the piston movement is the essential condition for the movement of the following piston, all distributor elements of a system are connected. Therefore, if a single piston of any distributor element of the system blocks off (even if it belongs to a different base), the entire system is also blocked off. This feature is very important for the control of a centralized system: in fact, you only need a single microswitch, reed switch or inductive proximity sensor installed on a element outlet to control the full system. Key features: - Operating pressure: min. 20 bar (290 psi) – max 200 bar (2900 psi) - No. of Cycles/minute: 200 max. - Tie-rod clamping torque: 1 kgm max. - Lubricant: oil min. 32 cSt (149 SUS) – grease max. 2 NLGI (265-295 ASTM)
