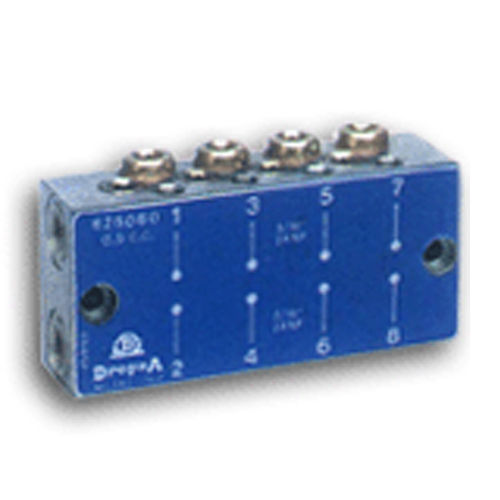

Piston valve APF05-APF1for lubrication systemssteelgalvanised steel
Add to favorites
Compare this product
Characteristics
- Type
- piston
- Applications
- for lubrication systems
- Material
- steel, galvanised steel
- Associated function
- discharge, outlet
- Other characteristics
- dual-line, grease
- Pressure
400 bar
(5,801.5 psi)- Temperature
Max.: 80 °C
(176 °F)Min.: -30 °C
(-22 °F)
Description
The feeder body is made of special anti-friction steel. Pistons are made of tempered steel. Bores and pistons are lapped to provide superior sealing. These feeders do not employ indicator turrets (see AP1 series) and are used for special applications.
The body has a galvanized finish and features an adaptor for single or double outlet conversion.
They are set by the factory 0,5 cc. per/stroke (.030 cu.in/stroke) for APF05 and at 1 cc. per/stroke (.061cu.in/stroke) for APF1 unless otherwise requested.
Key Features:
-Temperaute range: -30 to +80°C
- Max pressure (inlet): 400bar (5800psi)
- Cycles: 100/min
- Min. Viscosity: 100 cSt ( 462 SSU)
- Grease Max: 265 ASTM (NLGI 2)
- Connections: - inlet : 1/4" - outlet: 5/16" -24NF
