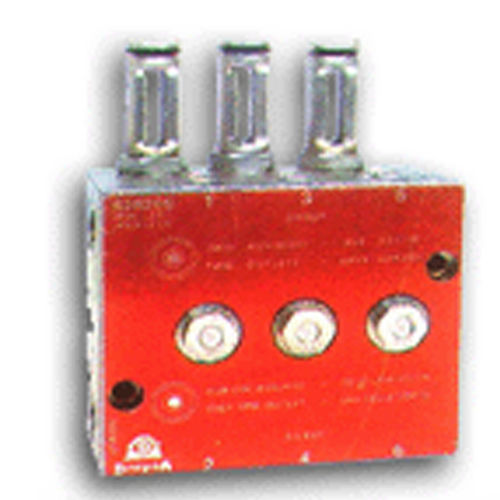

Piston valve AGG6 for lubrication systemssteelgalvanised steel
Add to favorites
Compare this product
Characteristics
- Type
- piston
- Applications
- for lubrication systems
- Material
- steel, galvanised steel
- Associated function
- outlet
- Other characteristics
- dual-line, grease
- Pressure
400 bar
(5,801.5 psi)- Temperature
Min.: -30 °C
(-22 °F)Max.: 80 °C
(176 °F)
Description
The feeder body is made of special anti-friction steel. Pistons are made of tempered steel. Bores and pistons are lapped to provide superior sealing.
The indicator turrets are provided with integral adjusting screws together with a metacrylate cover and seal. On request an aluminium cover can be supplied.
The feeder body has a galvanized finish and features an adaptor for single or double outlet conversion.
Key Features:
-Temperature range: -30 to +80°C
- Max. pressure (inlet): 400 bar (5800 psi.)
- Cycles: 100/min.
- Min. Viscosity: 100 cSt (462 SSU)
- Grease Max.: 265 ASTM (NLGI 2)
- Connections: - Inlet: 3/8" - Outlet: 3/8"
