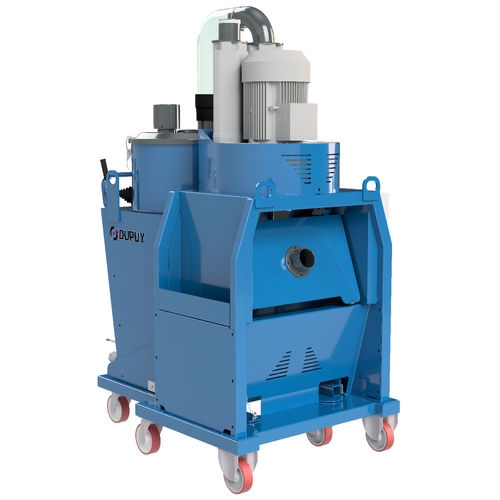

Oil and chip vacuum cleaner CHIPVAC 400
industrialliquiddust

oil and chip vacuum cleaner
oil and chip vacuum cleaner
oil and chip vacuum cleaner
Add to favorites
Compare this product


Characteristics

Domain
industrial
Substance vacuumed
oil and chip, liquid, dust
Power source
electric
Container type
steel
Configuration
wheel-mounted
Applications
for machine tools
Other characteristics
reversible
Power

7.5 kW

Capacity

400 l
(105.7 gal)

Air flow

700 m³/h
(24,720.3 ft³/h)

Vacuum

Max.: 431 mbar
(6 psi)

Min.: 392 mbar
(6 psi)

Cable length

10 m
(32'09" )

Height

206 cm
(81.1 in)

Length

146 cm
(57.5 in)

Width

104 cm
(40.9 in)

Description

The top-of-the-range chip vacuum cleaner from the Oil & Chips family, which combines DU-PUY’s decades of experience in the mechanical sector in one machine and, at the same time, unique and innovative elements, the fruit of our incessant research and development aimed at continuous improvement. The Chipvac 400 suction bucket has a large solid and liquid collection capacity with the possibility to add (optional) a metal sieve grid for oil and chips. Possibility of turning upside down -50° with the help of a forklift with a simple and effective patented system. The aspirator can be equipped with two different powerful side channel blowers, from 7,5 and 12,5 kW that allow to collect large amounts of chips in very short times. The new design allows the chip vacuum to move very easily together with its turbine, both on wheels and with the forklift. Before tipping the bucket, the turbine can be easily separated thanks to its independent support. Vacuum unit The aspirator is equipped with a powerful side channel turbine that develops a high air flow rate and depression and is suitable for continuous work. The electric motor, installed directly on the fan body, requires no maintenance. The exhaust of the outlet air is directed upwards, so as not to annoy the operator nor move dust in the surrounding environment. The suction unit is controlled by a low voltage electric panel, housed in the rear fairing, easy to access. The protection of the switchboard and motor is IP65.
