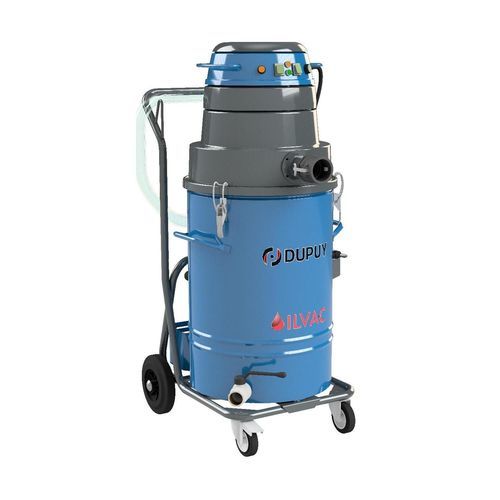

Oil extractor Oilvac 100P

Product overview
The Oilvac 100 and the Oilvac 100 PUMP version are an innovative suction and separation solution for oils mixed with chips, designed for integration in machine shops. The structure is made entirely of steel, resistant to abrasive oils. The unit is mounted on a powder-coated steel frame and fitted with non-marking swivel wheels with parking brake. The Oilvac 100 is configured to minimize downtime by reducing the time needed for suction and maintenance.

Applications

• Mechanical industry / machine shops

Vacuum unit
Equipped with two powerful single-phase motors; capable of extracting 90 liters of chips and mixed lubricants in a few minutes.

Filtration unit
An electromechanical float detects the liquid level in the container and automatically stops suction when full. Supplied with a 100 micron PPL filter for high filtration capacity.

Collection unit
Instant separation of vacuumed material: metal shavings are collected in an easily removable grated basket for rapid disposal. Oil passes through the basket and accumulates, filtered, inside the container. Quick discharge of oils and emulsions via a valve or via an independent electric pump (discharge capacity 100 l/min).

Data sheet (selected technical data)
Power supply: 230 V - 50 Hz - single-phase
Power: 2 x 1.1 kW
Maximum depression: 2,400 mmH2O
Maximum air flow rate: 360 m³/h
Nozzle: 50 mm
Primary filter: sack
Surface area - diameter: 1,200 cm² - 260 mm
Dimensions: 73 x 58 x 124 cm (WxDxH)
Weight: 65 kg

Technical characteristics / specifications

• Model: Oilvac 100P
• Steel construction resistant to abrasive oils
• Powder-coated steel frame
• Non-marking swivel wheels with parking brake
• Two single-phase motors (total 2 x 1.1 kW)
• Extraction capacity: 90 liters of chips and mixed lubricants (rapid extraction)
• Electromechanical float for automatic stop when container is full
• Filtration: 100 micron PPL filter; primary filter type: sack
• Grated removable basket for metal chip collection
• Oil discharge: valve or independent electric pump (100 l/min)
• Nozzle diameter: 50 mm
• Max depression: 2,400 mmH2O
• Air flow: 360 m³/h
• Surface area / diameter: 1,200 cm² / 260 mm
• Dimensions (WxDxH): 73 x 58 x 124 cm
• Weight: 65 kg
