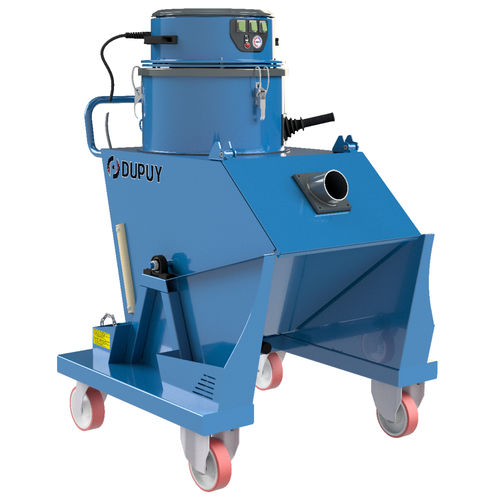

Compressed air vacuum cleaner CHIPVAC 200 AIR

industrialwheel-mountedATEX

A powerful suction and tilting bucket in line with DU-PUY‘s historic manufacturing tradition, completely revised in operation and design by our designers. The perfect solution to ensure maximum efficiency of machine tools and CNC machines in processing industries at all times. This industrial vacuum cleaner is equipped with 3 single-phase motors with the option of a 3-stage motor head in series for a higher vacuum. Suitable for vacuuming up large amounts of chips (dry and wet), which are collected inside the large holding tank. This bucket can be easily emptied by means of a patented and certified“soft” tipping system that allows the operation to be carried out quickly and safely. The vacuum cleaner is mounted on a sturdy powder-coated steel frame, equipped with non-marking swivel wheels and a parking brake. Also available in HV version. Vacuum is developed by three single-phase by-pass motors, with independent switches, protected within a solid steel header, which contains soundproofing material to minimize noise during service. The control panel includes three independent switches and a vacuum indicator with indicator light, useful for detecting filter saturation. Two handles on the head make it easy to lift the filter for inspection or replacement. Inside the steel filter chamber is a polyester pocket filter cat. L, which protects the suction unit, ensures high dust retention and guarantees the purity of the outlet air due to a large surface area (14000 cm2) and high filtering efficiency (3 microns).
