Oil extractor OILVAC 200
Add to favorites
Compare this product
Description

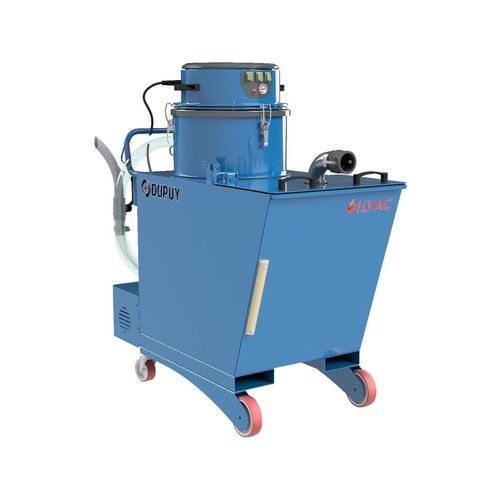

Product description The OILVAC 200 industrial suction bucket collects and filters up to 200 L of oil and emulsion mixed with metal chips. It features a float switch that stops suction when the container reaches maximum level and an independent high‑flow electric discharge pump (180 L/min) for rapid emptying of filtered liquids. A removable stainless steel grating basket retains chips for easy disposal and recovery. Designed for continuous industrial use, the unit reduces waste handling costs and improves process efficiency.
Applications
Suction unit Suction is provided by three charcoal by‑pass motors with independent switches, mounted in a soundproofed metal header. Options include a powerful single‑phase motor or a side‑channel turbine for continuous 24/7 operation.
Filter unit A float switch prevents overflow by stopping suction at maximum fill. A pocket bag filter protects the motors from dust and solids and ensures reliable filtration of emulsions and oils.
Collection unit The unit is built on a sturdy metal frame with industrial wheels for easy handling on uneven floors. The compact, removable container incorporates a sieve grid to separate solids from liquids.
Data sheet Power supply: 230 V, 50 Hz, 1~
Power: 3 x 1.1 kW or 2 x 1.6 kW
Maximum depression: 2,400 mmH2O
Maximum air flow rate: 540 m³/h
Nozzle diameter: 50 mm
Primary filter: pocket filters
Filter surface / diameter: 14,000 cm² / 420 mm
Dimensions (L x W x H): 122 x 62 x 130 cm
Weight: 205 kg
Characteristics / technical specifications
Applications
- Mechanical and metalworking industry
Suction unit Suction is provided by three charcoal by‑pass motors with independent switches, mounted in a soundproofed metal header. Options include a powerful single‑phase motor or a side‑channel turbine for continuous 24/7 operation.
Filter unit A float switch prevents overflow by stopping suction at maximum fill. A pocket bag filter protects the motors from dust and solids and ensures reliable filtration of emulsions and oils.
Collection unit The unit is built on a sturdy metal frame with industrial wheels for easy handling on uneven floors. The compact, removable container incorporates a sieve grid to separate solids from liquids.
Data sheet Power supply: 230 V, 50 Hz, 1~
Power: 3 x 1.1 kW or 2 x 1.6 kW
Maximum depression: 2,400 mmH2O
Maximum air flow rate: 540 m³/h
Nozzle diameter: 50 mm
Primary filter: pocket filters
Filter surface / diameter: 14,000 cm² / 420 mm
Dimensions (L x W x H): 122 x 62 x 130 cm
Weight: 205 kg
Characteristics / technical specifications
- Model: OILVAC 200
- Container capacity (oil and emulsion with chips): 200 L
- Discharge pump: independent high‑flow electric pump — 180 L/min
- Float switch: automatic stop at full container
- Chip separation: removable stainless steel grating basket / sieve grid
- Suction motors: three charcoal by‑pass motors with independent switches; optional single‑phase motor or side‑channel turbine for continuous 24/7 service
- Power supply: 230 V, 50 Hz, single‑phase (1~)
- Power configurations: 3 x 1.1 kW or 2 x 1.6 kW
- Maximum depression: 2,400 mmH2O
- Maximum air flow rate: 540 m³/h
- Nozzle diameter: 50 mm
- Primary filter type: pocket filters
- Filter surface / diameter: 14,000 cm² / 420 mm
- Dimensions (LxWxH): 122 x 62 x 130 cm
- Weight: 205 kg
- Frame & mobility: sturdy metal frame with industrial wheels
