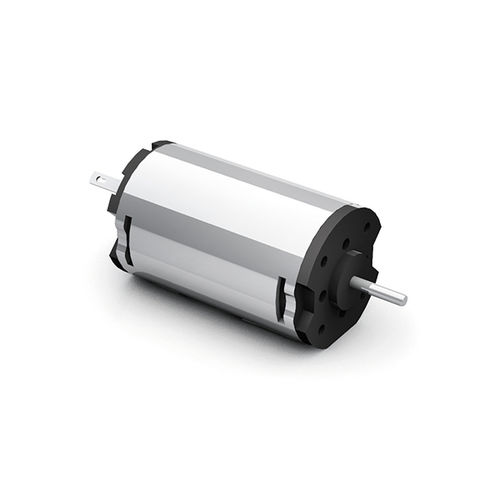

DC motor GR 30x10brushed24 V12 V
Add to favorites
Compare this product
Characteristics
- AC/DC
- DC
- Type
- brushed
- Voltage
- 24 V, 12 V
- Protection class
- robust, maintenance-free
- Configuration
- permanent magnet
- Power
Min.: 3.04 W
(0.004 hp)Max.: 4.62 W
(0.006 hp)- Intensity
0.21 A, 0.31 A, 0.6 A
- Torque
Min.: 0.01 Nm
(0.0074 ft.lb)Max.: 0.0327 Nm
(0.0241 ft.lb)- Rotational speed
2,900 rpm, 3,000 rpm, 3,500 rpm
(18,221.24 rad.min-1, 18,849.56 rad.min-1, 21,991.15 rad.min-1)
Description
» Stronger permanent magnet DC motor
» Mechanical commutation through multi bar commutator provides long lifetime
» Operation in both directions of rotation
» Sleeve bearing at motor shaft is standard
» Optionally with ball bearing, custom shaft length and diameter, lead version
Nominal voltage - V:12
Nominal current - A:0.9
Nominal torque - Ncm:1.65
Nominal speed - rpm:3300
Friction torque at no load - Ncm:0.35
Peak stall torque Ncm:5.4
No load speed - rpm:4650
Maximum output power W:6.5
Nominal power - W:5.7
Torque constant - Ncm/A:2.32
Terminal resistance Ohm:4.9
Terminal inductance - mH:3.64
Starting current - A 2.4
No load current - A 0.175
Rotor inertia gcm^2:18.5
Weight kg:0.11
