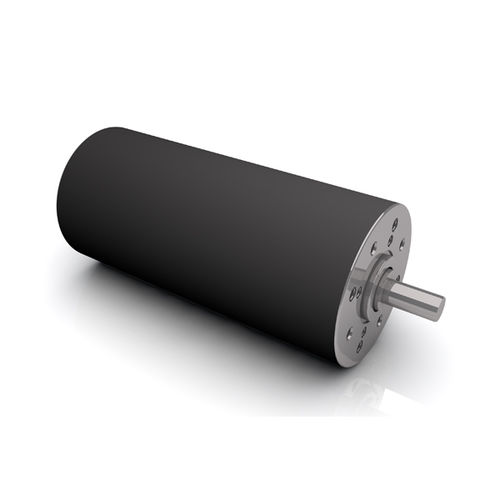

Brushed motor GR 80x80DC24 V60 V
Add to favorites
Compare this product
Characteristics
- Type
- brushed, DC
- Voltage
- 24 V, 60 V
- Configuration
- permanent magnet
- Protection class
- maintenance-free, robust
- Power
201 W, 214 W, 221 W
(0.27 hp, 0.29 hp, 0.3 hp)- Torque
0.62 Nm, 0.63 Nm
(0.457289 ft.lb, 0.464664 ft.lb)- Rotational speed
3,100 rpm, 3,200 rpm, 3,350 rpm
(19,477.8745 rad.min-1, 20,106.193 rad.min-1, 21,048.6708 rad.min-1)
Description
» Operation in both directions of rotation
» Ball bearing at motor output shaft is standard
» Optionally with deviant shaft length and diameter, shaft on both sides, special and high voltage winding, higher protection class up to IP 67
Nominal voltage - V:24
Nominal current - A:10
Nominal torque - Ncm:62
Nominal speed - rpm:3200
Friction torque at no load - Ncm:5.5
Peak stall torque Ncm:745
Maximum torque Ncm:608
No load speed - rpm:3200
Maximum output power W:655
Nominal power - W:214
Torque constant - Ncm/A:6.7
Terminal resistance Ohm:0.21
Terminal inductance mH:1.5
Starting current - A:112
No load current - A:0.65
Demagnetisation current A:91
Rotor inertia gcm^2:3200
Weight kg:4
