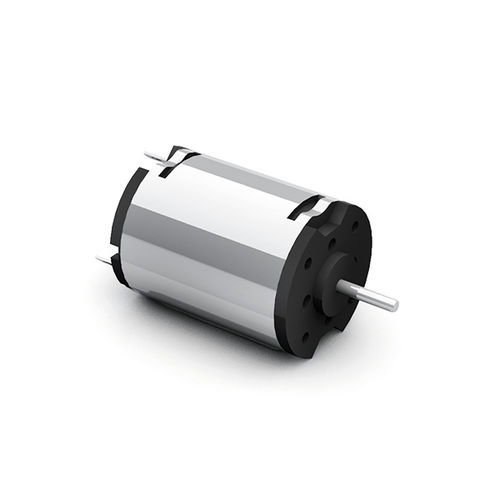

DC motor GR 30x20brushed24 V12 V
Add to favorites
Compare this product
Characteristics
- AC/DC
- DC
- Type
- brushed
- Voltage
- 24 V, 12 V
- Configuration
- permanent magnet
- Other characteristics
- high-efficiency
- Power
Max.: 9.5 W
(0.013 hp)Min.: 5.7 W
(0.008 hp)- Intensity
0.28 A, 0.45 A, 0.9 A
- Torque
Max.: 0.069 Nm
(0.0509 ft.lb)Min.: 0.0165 Nm
(0.0122 ft.lb)- Rotational speed
2,900 rpm, 3,000 rpm, 3,500 rpm
(18,221.24 rad.min-1, 18,849.56 rad.min-1, 21,991.15 rad.min-1)
Description
» Stronger permanent magnet DC motor
» Mechanical commutation through multi bar commutator provides long lifetime
» Operation in both directions of rotation
» Sleeve bearing at motor shaft is standard
» Optionally with ball bearing, custom shaft length and diameter, lead version
Nominal voltage - V:12
Nominal current - A:0.6
Nominal torque - Ncm:1
Nominal speed - rpm:2900
Friction torque at no load Ncm:0.25
Peak stall torque Ncm:3
No load speed - rpm:4650
Maximum output power W:3.65
Nominal power - W:3
Torque constant - Ncm/A:2.32
Terminal resistance Ohm:8.58
Terminal inductance mH:5.15
Starting current - A:1.4
No load current - A:0.145
Rotor inertia gcm^2:11
Weight kg:0.08
