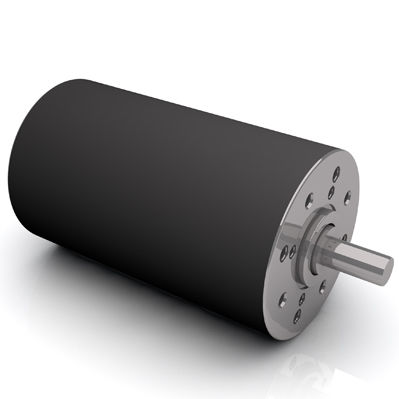

Brushed motor GR 80x40DC24 V12 V
Add to favorites
Compare this product
Characteristics
- Type
- brushed, DC
- Voltage
- 24 V, 12 V, 60 V
- Configuration
- permanent magnet
- Protection class
- robust
- Power
97.5 W, 105 W, 120 W, 128 W
(0.13 hp, 0.14 hp, 0.16 hp, 0.17 hp)- Torque
0.345 Nm, 0.35 Nm
(0.254459 ft.lb, 0.258147 ft.lb)- Rotational speed
2,700 rpm, 2,900 rpm, 3,250 rpm, 3,500 rpm
(16,964.6003 rad.min-1, 18,221.2374 rad.min-1, 20,420.3522 rad.min-1, 21,991.1486 rad.min-1)
Description
» Operation in both directions of rotation
» Ball bearing at motor output shaft is standard
» Optionally with custom shaft length and diameter, shaft on both sides, special and high voltage winding, higher protection class up to IP 67
Nominal voltage - V:24
Nominal current - A:5.75
Nominal torque - Ncm:34.5
Nominal speed - rpm:2900
Friction torque at no load - Ncm:4
Peak stall torque Ncm:310
No load speed - rpm:3200
Maximum output power W:260
Nominal power - W:105
Torque constant - Ncm/A:6.68
Terminal resistance Ohm:0.52
Terminal inductance mH:2.6
Starting current - A:46.4
No load current - A:0.463
Demagnetisation current A:48
Rotor inertia gcm^2:1800
Weight kg:2.8
