Brushed motor GR 53x30
DC12 V60 V

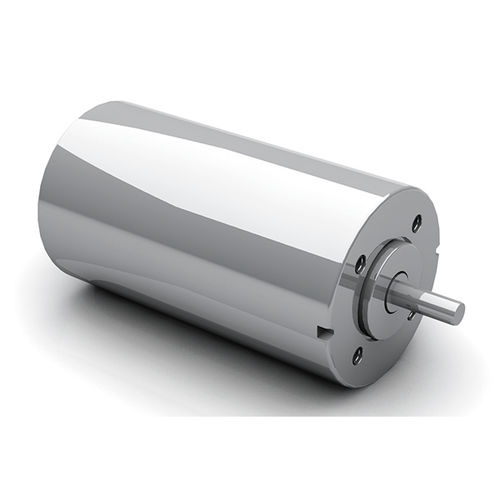

Brushed motor - GR 53x30 - Dunkermotoren GmbH - DC / 12 V / 60 V
Brushed motor - GR 53x30 - Dunkermotoren GmbH - DC / 12 V / 60 V
Brushed motor - GR 53x30 - Dunkermotoren GmbH - DC / 12 V / 60 V - image - 2
Add to favorites
Compare this product

Characteristics

Type
brushed, DC
Voltage
12 V, 60 V
Configuration
permanent magnet
Protection class
robust, maintenance-free
Power

35.7 W, 37 W, 37.7 W, 39.2 W
(0.05 hp, 0.05 hp, 0.05 hp, 0.05 hp)

Torque

0.09 Nm, 0.096 Nm, 0.1 Nm
(0.066381 ft.lb, 0.070806 ft.lb, 0.073756 ft.lb)

Rotational speed

3,600 rpm, 3,680 rpm, 3,790 rpm, 4,000 rpm
(22,619.4671 rad.min-1, 23,122.1219 rad.min-1, 23,813.2723 rad.min-1, 25,132.7412 rad.min-1)

Description

» Mechanical commutation through multipartite collector provides long lifetime » Operation in both directions of rotation » Ball bearing at motor output shaft is standard » With custom shaft length and diameter, shaft on both sides, special winding, higher protection class up to IP 67 Nominal voltage - V:24 Nominal current - A:2.3 Nominal torque - Ncm:10 Nominal speed - rpm:3600 Friction torque at no load - Ncm:1.4 Peak stall torque Ncm:67 No load speed rpm:4200 Maximum output power W:73.8 Nominal power - W:37.7 Torque constant - Ncm/A:5.06 Terminal resistance Ohm:1.77 Terminal inductance mH:3.6 Starting current - A:13.5 No load current - A:0.28 Demagnetisation current A:20 Rotor inertia gcm^2:229 Weight kg:0.85
