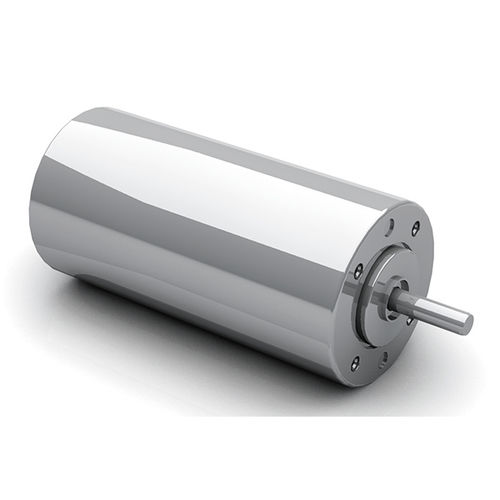

Brushed motor GR 42x40DC24 V12 V
Add to favorites
Compare this product
Characteristics
- Type
- brushed, DC
- Voltage
- 24 V, 12 V
- Configuration
- permanent magnet
- Protection class
- maintenance-free
- Power
18.5 W, 20.3 W, 20.8 W
(0.03 hp, 0.03 hp, 0.03 hp)- Torque
0.053 Nm, 0.057 Nm
(0.039091 ft.lb, 0.042041 ft.lb)- Rotational speed
3,100 rpm, 3,400 rpm, 3,750 rpm
(19,477.8745 rad.min-1, 21,362.83 rad.min-1, 23,561.9449 rad.min-1)
Description
» Mechanical commutation through multipartite collector provides long lifetime
» Operation in both directions of rotation
» Ball bearing at motor output shaft is standard
» Custom shaft length and diameter, shaft on both sides, special winding, higher protection class up to IP 67
Nominal voltage - V:24
Nominal current - A:1.22
Nominal torque - Ncm:5.7
Nominal speed - rpm:3100
Friction torque at no load Ncm:0.8
Peak stall torque Ncm:33
No load speed - rpm:3800
Maximum output power W:32.3
Nominal power - W:18.5
Torque constant - Ncm/A:5.84
Terminal resistance Ohm:4.2
Terminal inductance mH:5.1
Starting current - A:5.68
No load current - A:0.175
Demagnetisation current A:10.5
Rotor inertia gcm^2:110
Weight kg:0.49
