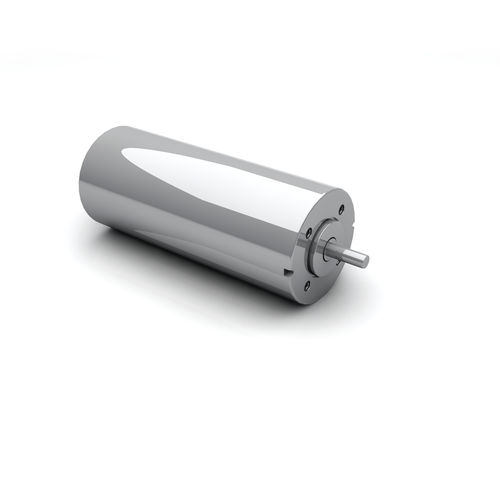

Brushed motor GR 53x58DC12 V60 V
Add to favorites
Compare this product
Characteristics
- Type
- brushed, DC
- Voltage
- 12 V, 60 V
- Configuration
- permanent magnet
- Protection class
- robust
- Power
48.7 W, 53.4 W, 58.7 W, 61.4 W
(0.07 hp, 0.07 hp, 0.08 hp, 0.08 hp)- Torque
0.155 Nm, 0.17 Nm
(0.114322 ft.lb, 0.125386 ft.lb)- Rotational speed
3,000 rpm, 3,300 rpm, 3,450 rpm
(18,849.5559 rad.min-1, 20,734.5115 rad.min-1, 21,676.9893 rad.min-1)
Description
» Mechanical commutation through multipartite collector provides long lifetime
» Operation in both directions of rotation
» Ball bearing at motor output shaft is standard
» With custom shaft length and diameter, shaft on both sides, special winding, higher protection class up to IP 67
Nominal voltage - V:60
Nominal current - A:1.3
Nominal torque - Ncm:17
Nominal speed - rpm:3450
Friction torque at no load - Ncm:2
Peak stall torque Ncm:144
No load speed - rpm:3600
Maximum output power W:136
Nominal power - W:61.4
Torque constant - Ncm/A:14
Terminal resistance Ohm:5.8
Terminal inductance mH:26.1
Starting current - A:10.3
No load current - A:0.1
Demagnetisation current A:13.5
Rotor inertia gcm^2:460
Weight kg:1.16
