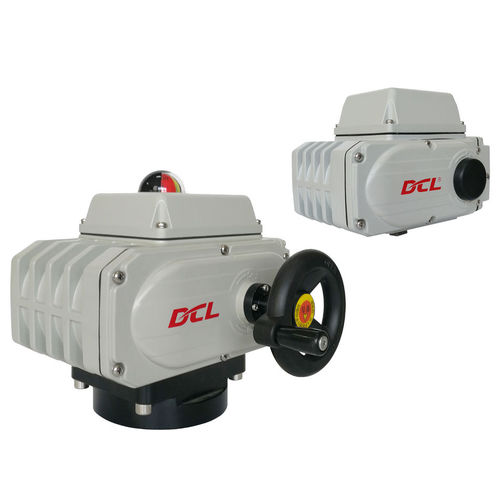

Smart valve actuator DCL-GE series

electricquarter-turncompact

Detailed Product Description Action Time: - 15S/30S - Output Torque: - 0~600Nm Input Signal: - 4-20mADC - Output Signal: - 4-20mADC Power Supply: - 24VDC - Installation Angle: - 360° Motor Power: - 30W/70W - Total Weight: - 4.5KG/9.5KG Ambient Temperature: - -25℃~+55℃ / -13°F~+131°F - Protection Grade: - IP67 NEMA4/4X Features  - Quarter turn operation modulated by 24VDC power  - Torque can be precisely setting within a certain range  - Heavy duty DC brushless motor low temperature rising, longer life, provide high start torque and very small inertia force  - Torque test control and over torque protection by current  - Compact smart resin plastic packaged drive controller  - Weatherproof IP 67 robust aluminum alloy enclosure, protection against dust and water  - Manual override with Allen wrench or handwheel  - ISO5211 direct installation  - UL standard/CSA listed/CE marked/RoHS 3 complied Description DCL-10GE/40GE smart electric actuator is powered by 24VDC and proportional controlled by 4-20mA or 2-10V input control signal. DC brushless motor has lots of advantages for actuator. Permanent magnet rotor makes the motor’s temperature rising is 20℃ lower than AC motor. Its frequently start-up causes very few fever. Actuator can reach 1200 starts per hour operation with large start-up torque and strong overload capacity. Moreover, DC brushless motor is non-mechanical friction and can provide reverse electromagnetic brake function. When positioning, the speed of motor will automatically slow down when set value is approaching, to improve positioning accuracy(error is less than ±1%) with lower vibration.
