Detailed Product Description
Standard Time/Torque: - 15S To 75S/18Nm To 2500Nm/160in.lbs To 22125in.lbs -
Installation Angle: - 360°
Input Signal: - 4-20mA Or 2-10V / 1-5V Optional -
Output Signal: - 4-20mA
Ambient Temperature: - -25℃~+55℃ / -13°F~+131°F -
Total Weight: - 2.5KG To 20KG
Motor Power: - 10W To 140W -
Protection Grade: - IP67 NEMA4/4X
Power Supply: - 24VAC/110VAV/220VAC
Features
- 90° turn with proportional to input control signal
- Self-calibrating with continuously output position monitoring signal as standard
- Mechanical over torque protection optional
- Watertight IP67 and NEMA 4X aluminum alloy enclosure with 100% underwater tests
- World-leading EMC, 100% passed EFT, ESD and Surge tests
- Stable operation on extra high/low temperature with high humidity
- Full potted resin plastic packaged controller to protect electronics from vibration and moisture
- All metal gears with self-locking worm gear
- CSA listed/UL complied/CE marked/RoHS 3.0 tested
Description

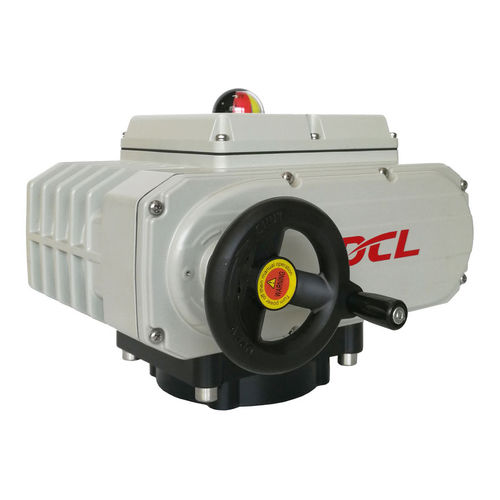

DCL modulating type electric actuator is integral design of motor, control pack and housing. Unlike other electric actuators those always add an extra cavity for controller, which makes the actuator’s appearance weird and not compact, DCL actuator designed a very small multifunctional control pack that is similar size as terminal block of on-off type. So it can be put inside the wiring cavity.
Though the controller is very small, but its electric clearance creep distance satisfies the UL standard. It can suffer 2500V surge test, 4000V EFT test, 4000V ESD test to ensure world leading EMC performance.
