triaxial accelerometer / IEPE / shear / EMI
3093M8

{{requestButtons}}

Characteristics

  • Number of axes:

    triaxial

  • Technology:

    IEPE, shear

  • Other characteristics:

    EMI

  • Acceleration range:

    490 m/s² (1,608 ft/s²)

  • Frequency:

    Min.: 2 Hz

    Max.: 5,000 Hz

Description

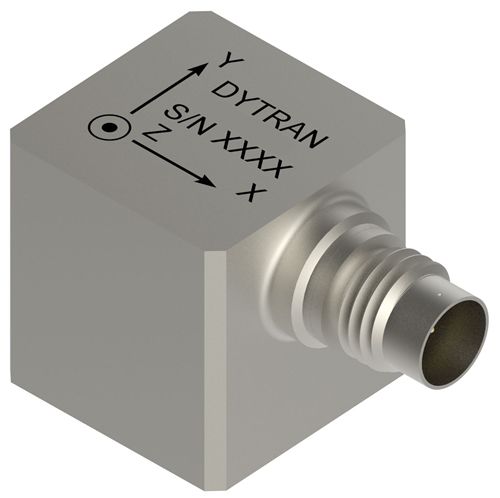

Model 3093M8, Triaxial Accelerometer with TEDS

OVERVIEW

The Dytran model 3093M8 is a case isolated triaxial IEPE accelerometer with a 100 mV/g sensitivity, vertical height of 0.61-inches (15.5-millimeters), an overall weight of 10 grams, and includes Transducer Electronic Data Sheet (TEDS; per IEEE 1451.4) capabilities.

Featuring ceramic shear sensing elements packaged in a lightweight titanium housing, design of the model 3093M8 incorporates an industry standard 4-pin radial connector and 10-32 stud mounting capabilities. Units are hermetically sealed for reliable operation in high humidity and dirty environments and case isolated to avoid EMI/ground loop interference.
